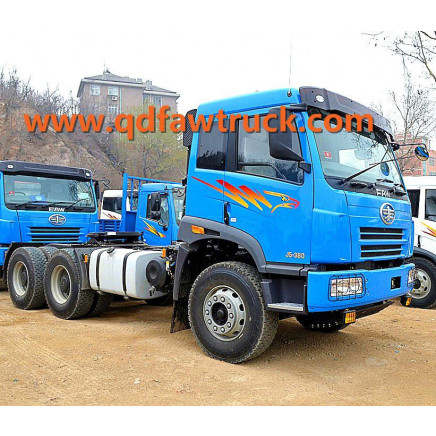

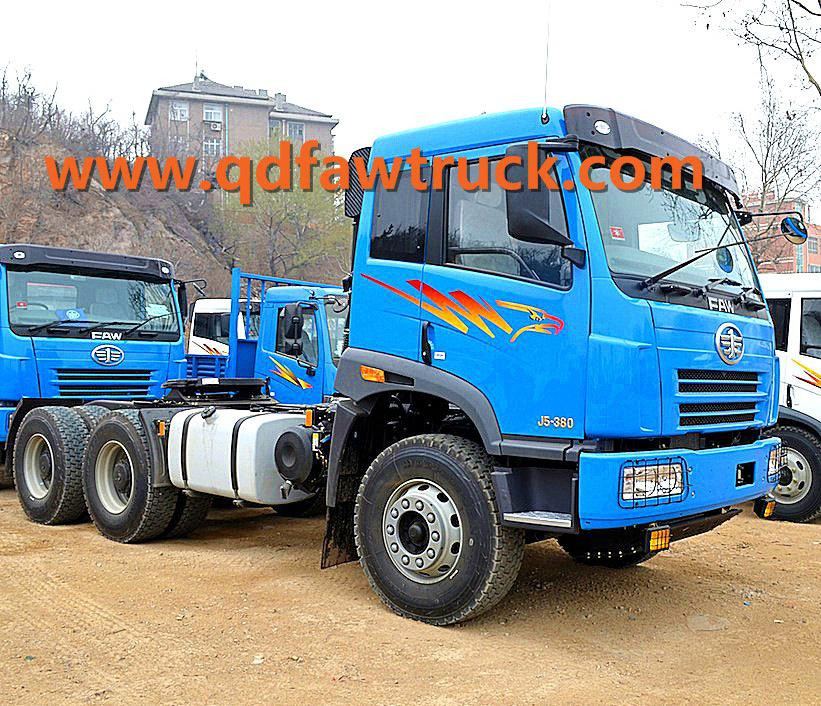

380HP Tractor Truck, FAW Trailer Truck (CA4322P2K15T1YA80)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-50000.0/ Piece

Price:$30000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 16, 2014 To Jan 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA4322P2K15T1YA80

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Truck Type:Tractor Truck

Steering:Rhd

Towing Capacity:60 Tons

Colour:Red, White, Blue

Engine:380HP

Tyre:315/80r22.5

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:8701200000

Production Capacity:50 PCS/ Month

Product Description

Durable 6X4 FAW J5P Tractor Truck
Type Name 6*4 cab over engine reinforced towing truck
Cabin: New J5P, full-floating, high top cab, A/C
Engine Model: WEICHAI POWER WD615.38
Emission standard: Euro 2 Power (KW): 380HP
Clutch model: Import EATON, 430mm, single plate, dry diaphragm
Gearbox Model: Fuller CA9TB160M Steering: RHD, TRW
Rear Axle: 457 single reduction axle(speed ratio: 4.111)
Wheel & tire: Double Coin brand, 315/80R22.5-20 Model, 20 Ply Rating
Axle Base: 3350+1350 Fuel Tank: 500 L
WABCO valve, WABCO clutch booster, Korea maintenance-free battery. Many USA parts manufacturers are our suppliers. Such as TFLOCK self-locking nuts, WOODWARD speed governor, NORGREN solenoid valves, TUTHILL cable, VOITH retarder, TENNECO shocker, AMP plug connector, CVG driver seat, and so on.
Overall dimensions L: 6793mm W: 2490mm H: 2985mm
Front overhang(loaded) 1493
Rear overhang(loaded) 800
Wheel base Front wheel 2020
Rear wheel 1820
Passing angle(loaded) Approach angle 27
Departure angle 60
Parameter Curb weight (kg) 8750
Gross truck weight 25000
Max. Uthorized towed weight 70, 000 KG

What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Truck model			CA4322P2K15T1YA80
Manufacturing Company			FAW
Drive wheel			6x4
Engine	Model		WD615.38
	Manufacturing Company		WEICHAI POWER
	Maximum output		380HP
	Emission standard		Euro II
	Number of cylinder		6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission			CA9TB160M
Clutch			Import USA EATON, 430mm
WABCO valve, WABCO clutch booster, maintenance-free battery
Front Axle			A1H
Rear Axle			457 (rate:4.111)
Chassis	Frame		300808mm
	Fuel tank		380L
Steering			TRW tech
Brakes			Drum
Wheel Base(mm)			3300+1350
Wheels&Tires			Tire: 315/80R22.5 tubeless
Driver Cabin		J5P,1 sleeper, A/C, Electric lifting, All-steel bumper
Electrics		Operating voltage	24v
		Starter, Alternator	China brand
Overall Dimensions		Overall Length	6793mm
		Overall Width	2496mm
		Overall Heigth	2980mm
Performance		Maximum speed	88 km/h
