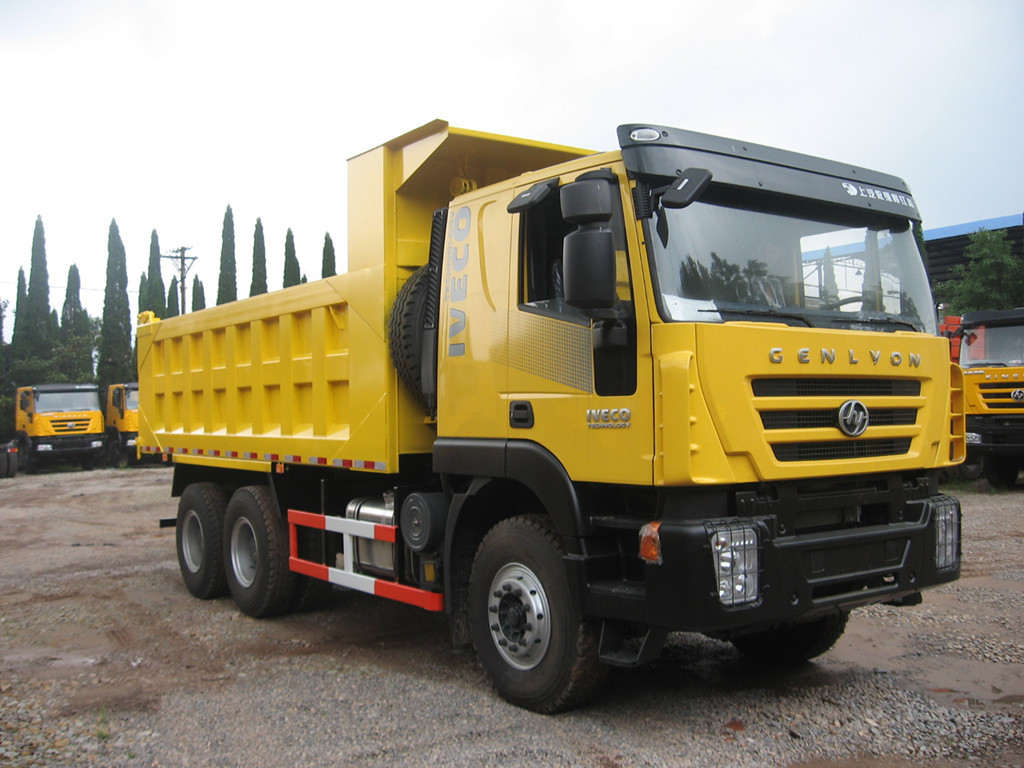

380HP Iveco Genlyon Dump Truck (Iveco TECH)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (UNIT)	Unit Price
1.0	US $ 30000.0-60000.0/

Price:$30000.0 - $60000.0 / UNIT

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Oct 15, 2014 To Jan 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Cq3254htg384

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6ط4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Middle Lift/Front Lift

Condition:New

Truck Type:Dump Truck

Type:Box/Stake Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing

Standard:Euro3 Emission Standard

Origin:China

HS Code:8704230090

Production Capacity:50000 Units/Year

Product Description

1. Saic-Iveco Hongyan Genlyon dump truck;
2. Adopt Italian advanced techonology;
3. Flexible sales system, competitive price;
4. Excellent quality, good after services and mature spare parts system

380HP Iveco Genlyon Dump Truck (Iveco TECH)

NO.	SPECIFICATION	PARAMETER	NOTE
1	Model	CQ3254HTG384
2	Cab	Genlyon Flat-roof Cab, Left Hand Drive, with AC	Yellow/red/white
3	Drive	6ط4
4	Rated Payload(kg)	12,780
5	Kerb Weight(kg)	12,090
6	Gross Vehicle Weight(kg)	25,000
7	Overall Dimension(mm)	8,516ط2,500ط3,510(LWH)
8	Dump Box Dimension(mm)	5,600ط2,300ط1,250(LWH)
9	Dump Box Volume (m 3 )	16
10	Thickness of Track Bed	Bottom 8mm,side 6mm
11	Lifting Cylinder	HYVA150	Front lift
12	Max Speed(km/h)	85
13	Wheelbase(mm)	3,775+1,400
14	Engine	Cursor9	Euro III
15	Engine Output(HP)	380
16	Gearbox	12JSD180T	Fuller technology
17	Steering gear	Germany Technology ZF steering gear
18	Frame	outside width 865mm, longeron cross section 317x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 7,000 kg
20	Driving axle	Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg
21	Tyre	12.00R20
22	Oil Tank	350L	Aluminum
