35tons 260HP Foton Auman 8X4 Dumper Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

35tons 260HP Foton Auman 8X4 Dumper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$38000.0 - $43000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 43000/ Piece
15.0	US $ 40000/ Piece
30.0	US $ 38000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 29, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BJ3312DNPJC-1

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:8�4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Foton-Auman

Engine:191kw / 260HP

Gerbox:Fast 9-Speed

Drivre Axle:10t

Cargo Body Size:6000/6200/6500*2300*1500/1800mm

Cargo Body Volume:20cubic-26cubic

Thickness:Side 4mm;Bottom 8mm

Lifting System:with Front Hydraulic RAM

Side Door:Optional

Hyva Lifting System:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

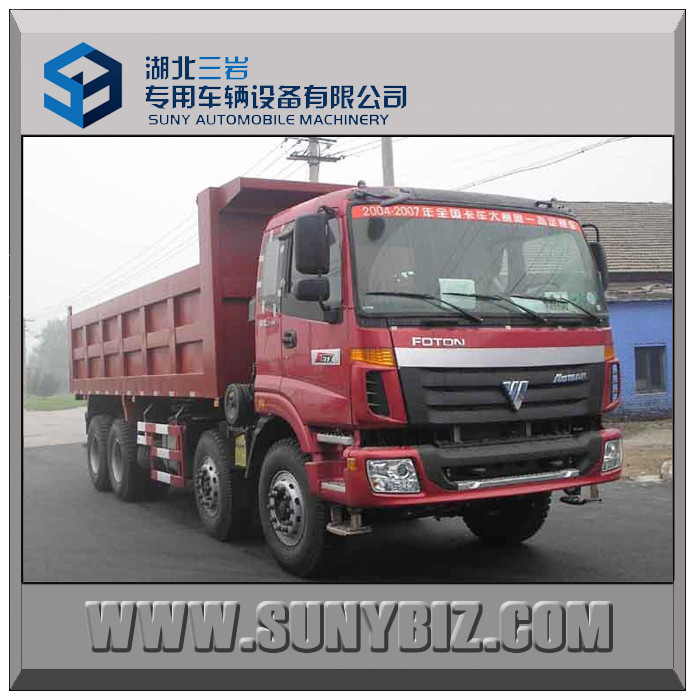

FOTON AUMAN 8x4 Dump Truck / Tipper truck
AUMAN dumper drive type 8X4
YC engine260hp,EURO ENGINE,
foton auman ETX cabin,With A/C
FAST,9.-speed gearbox

Chassis Info:
FOTON AUAMN TRUCK. Load capacity 25T,30T,35T.
Diesel engine, 191kw / 260hp,FAST,9-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:6000/6200/6500*2300*1000*1500/1800mm ,
20CBM Dump Truck,22CBM Dump Truck,24cbm Dump Truck/26 cubic Tipper truck

Equipped with material of carbon steel Q235,Side 4mm thickness;bottom 8mm thickness,
Equipped with front hydraulic ram(Optional, HYVA Brand),Single rear door.

Products Technical Specification
Brand-Series		FOTON AUMAN 8*4 DUMP TRUCK
Model		BJ3312DNPJC-1
Emission Standard		Euro 3
Fuel type		Diesel
Cabin		Auman ETX,flat top cabin
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	942025003400
	Cargo body dimensions	6000/6200/650023001500/1800
	Wheel base	1860+3050+1300
	Front overhang	1510
	Rear overhang	1200
	Min. ground clearance	500
Weight data (kg)	G.V.W	31000
	Curb weight (chassis)	14095
	Max payload	25000 -40000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	YC6A260-33
	Maximum power	191kw / 260HP
	Number of cylinders	6
	Displacement (L)	7.255
	Engine Manufacturer	Yuchai engine Power Co., Ltd.
Transmission	Brand and Model	FAST
Transmission	Number of gears	9 forward gears, 1 reverse gear.(Manual)
Axle	Rear	10T
Suspension	Front	10- Leaf spring
Suspension	Rear	10- Leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Dual-circuit air brake
Electric device	Rated voltage	24V
Tyres & Quantity		11.00R20 & 12+1
Cargo body Description
Cargo body dimensions (mm)		6000/6200/650023001500/1800
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 4mm thickness; bottom 8mm thickness
Lifting System		Equipped with front hydraulic ram one back door Optional Side door,
Optional Configuration
Van thickness,side door,Front lift (HYVA BRAND)etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton
