35m3 Fuel Tank Semi Trailer/Liquid Tank (WL9408GHYA)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 21300.0-25000.0/ Piece

Price:$21300.0 - $25000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 24, 2015 To Oct 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9408GHYA

Type:Semi-Trailer

Load Capacity:35t

Certification:ISO9001, CCC, ISO/TS16949

Tread:1820mm

Grade:Heavy Duty

Towing Pin Type:90#,Assembled

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Scale:Heavy Duty

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude

Origin:China Anhui Wuhu

HS Code:87163990

Production Capacity:10000units/Year

Product Description

Overall Dimension:11000*2480*3449mm
Axle Space:6650+1310+1310mm
Tare Weight:8500kg
Loading Capacity:35000kg
Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Please contact us to know more.

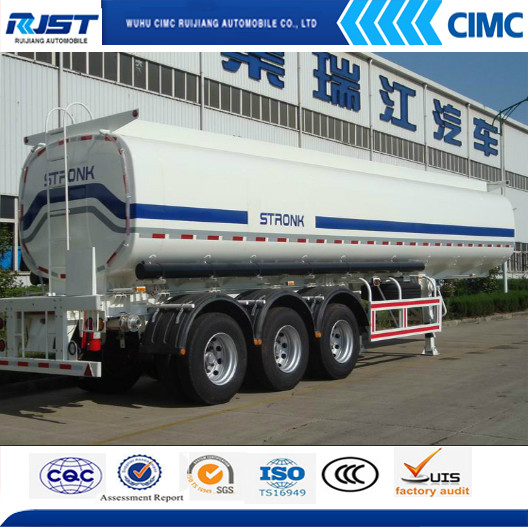

35m3 Fuel Tank Semi-trailer with Three Axles
Parameter	Dimension(mm)	1100024803449
	Axle Space(mm)	6650+1310+1310
	Tare Weight(kg)	8500
	Loading Capacity(kg)	35000
	Tank Thickness	6mm
	Bulkhead Thickness	5mm
	Baffle Thickness	4mm
OEM	Tyre	12R22.5-16PR
	Landing Gear	28T Baohua
	King Pin	90#,assembled
	Axle	3 units,13T Fuwa
	Suspension	mechanical suspension
	Tire	12 units,11.00R20
	Rim	12 units,8.0-20
	Emergency Valve	one 3''stainless steel
	Ball Valve	one 3''carbon steel
	ABS	4S/2M
Others	Fire Extinguisher	2 units
	Tool Box	1 unit,0.8m
	Spare Tyre Carrier	2 units
