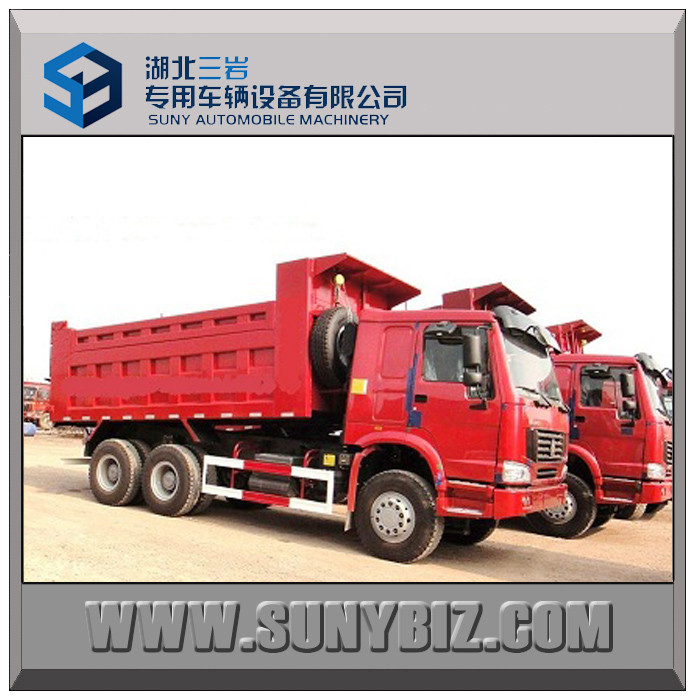

336HP 6X4 Sinotruk HOWO Euro2 Stock Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

336HP 6X4 Sinotruk HOWO Euro2 Stock Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$35000.0 - $42000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 42000/ Piece
5.0	US $ 38000/ Piece
10.0	US $ 35000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 11, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257N

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 2

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Cnhtc Sinotruk HOWO

Engine:247kw (336HP)

Gerbox:Hw15710 10 Forward Gears, 2 Reverse Gear

Drivre Axle:Hc16

Cargo Body Size:5600*2300*1500mm

Cargo Body Volume:18 Cubic-20 Cubic

Thickness:Side8m;Bottom 10mm

Hydraulic Cylinders:Front Lift

Side Door:Optional

Left / Right Hand Drive:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

336HP 6x4 sinotruk howo EURO2 stock Dump Truck / Tipper truck
howo Half row with A/C sleeper,howo gearbox 10-speed
CNHTC sinotruk engine 247kw/336hp,HC16 rear axle
dumper drive type;6x4 Optional 6x6 and 8x4
dumper box size:5600*2300*1500mm 18cbm ~ 20cbm ~22cbm
LEFT HAND DRIVE OR RIGHT HAND DRIVE

Dumper Equipped with material of carbon steel Q235,
Side 8mm thickness;bottom 10mm thickness,

Dumper Equipped with front hydraulic ram
(Optional middle lifting;HYVA Brand),Single rear door.

Products Technical Specification
Type	Sinotruk 6*4 Dump Truck
Cab	HW76,single sleeper,with A/C
Vehicle Description
Overall dimensions(mm)	854524963450
G.V.W (kg)	25000
Curb weight(vehicle) (kg)	12450
Loading capacity (kg)	25000-50000
Max speed (Km/h)	75
Engine
Engine modle	WD615.69 Euro 2
Maximum power	247kw (336hp)
Displacement (lit)	9.726
Engine Manufacturer	China Heavy Duty Truck Group Co., Ltd.
Chassis Description
Chassis model	ZZ3257N
Wheel base	3825+1350
F/R track base(mm)	2022/1830
F/R overhang(mm)	1500/1936
Approach/Departure angle(�)	19/30
Spring plate	10/12
Rear axle	HC16
Type of fuel	Diesel
Gear box	HW15710, 10-speed with over drive
Steering	ZF8098
Electric system	24V
Tire	12.00R20
Dumper body Description
Van dimensions(mm)	560023001500
Van description	Equipped with material of carbon steel, side 8mm thickness; bottom 10mm thickness, Equipped with Front hydraulic ram, single door
Optional Equipment	HYVA Brand Front Lifting System Radial Tire,Dumper body thickness,side door,etc

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have SINOTRUK howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc
