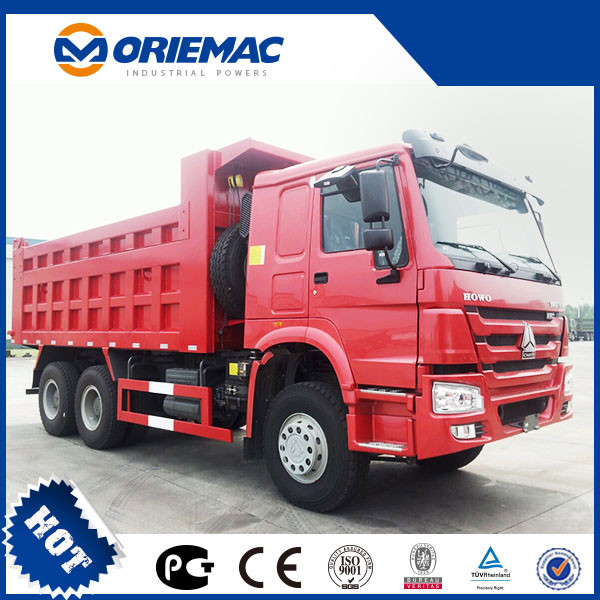

336HP 6X4 Sinotruk HOWO Dump Truck Low Price Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 36000/ Piece

Price:US $36000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Apr 17, 2015 To Jul 18, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257N4647

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Horsepower:251-350hp

Condition:New

Dimensions (L x W x H) (Mm):9145X2496X3170

Engine:Wd615.69

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude Packing

Standard:CE, ISO9001

Origin:Shandong, China (Mainland)

Production Capacity:500/Month

Product Description

HOWO 6*4 Dump Truck for sale
1. CNHTC WD615.69 engine, 336HP
2. Transmission: HW15710
3. HOWO76 CAB

6X4, DUMP TRUCK, HOWO76 cabin(Single sleeping bed, A/C), with CNHTC WD615.69 engine, 336HP, with HW15710 transmission, ZF8098 steering, with 12.00R20 tyres, etc.

Carriage dimension:mm			650023001500
Dimension(Lx W xH) ( unloaded )( mm )			9145×2496×3170
Approaching angle/Departure angle ( ° )			19/23
Overhang(front/rear) (mm)			1500/1870
Wheel base (mm)			4600+1350
Max speed ( km/h ) (km/h)			75
Curb weight ( kg )			15250
Engine (Steyr technology, made in China)	Model		WD615.69 , water-cooled , four strokes , 6 cylinders in line with water cooling , turbocharged and intercooling, directly injection
	Fuel type		Diesel
	Power, max ( kw/rpm )		247/2200
	Emission		EURO II
Fuel tanker capacity ( L )			300
Transmission		Model	HW15710 , 10 forward&2 reverse
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
Steering system		Model	ZF8098
Front axle		HF9
Rear axle		HC16
Tyre		12.00R20
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HOWO76 cab(Single beds,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
