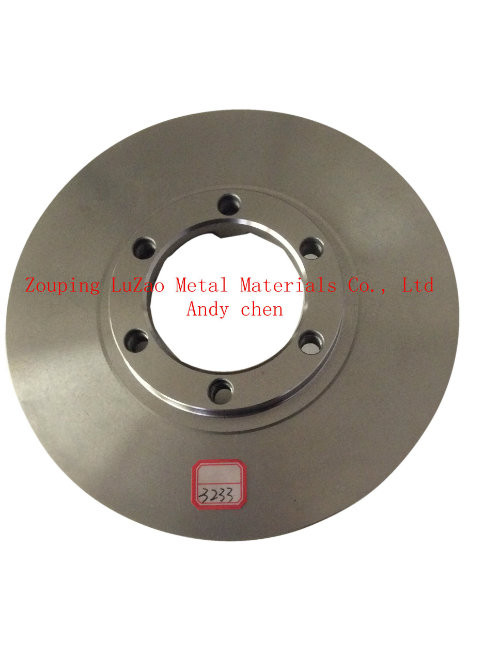

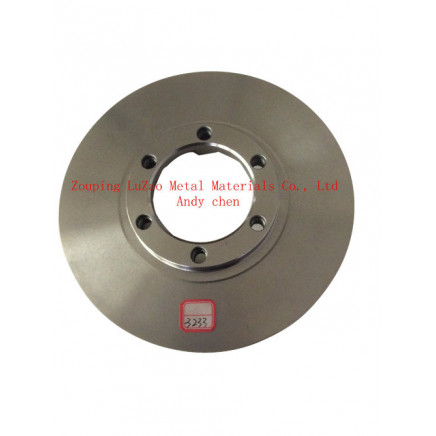

3233 (94172376) Excellent Brake Disc with ISO9001 Certification

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

3233 (94172376) Excellent Brake Disc with ISO9001 Certification

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 8.0-40.0/ Piece

Price:$8.0 - $40.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jun 08, 2015 To Jan 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:3233 ( 94172376)

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:257mm*36mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Port:FOB Qingdao

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Neutral or Color, as Customer?s Request

Standard:ISO9001

Origin:Zouping, Shandong

HS Code:87083099

Production Capacity:400 Tons Per Month

Product Description

Details

� Position: Front wheel
� Height: 36 mm
� Diameter: 257mm
� Center hole dia: 88mm
� Pitch circle diameter: 109mm
� Brake disc thickness: 22 mm
� Minimum thickness: 20.6 mm
� Number of holes: 6
� Solid or vented: V
� Suitable for Isuzu, vauxhall, Opel
Packing: Neutral or Color, as customer's request
Brake disc Specifications:
� 1) Material: Gray iron HT250/G3000
� 2) Long service life & stable performance
� 3) 100% crucial dimension inspection
� 4) 100% qualification
� 5) Low noise standard for casting is HT250, Standard for machining is SAE-j431.
� 6) Stable coefficient friction
3233 (94172376) Excellent Brake Disc with ISO9001 Certification

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.
AIMCO NO.	3233
Position	Front axle
Size	257*36mm
Height	36mm
Outer Diameter	257mm
Centering Hole Dia	88mm
Pitch circle diameter	109mm
Brake disc thickness	22mm
Minimum thickness	20.6mm
Number of holes	6
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide

If you are interested in ,please feel free to contact me :0086-543-4347957 . Welcome to log in www.zplz.cn .
