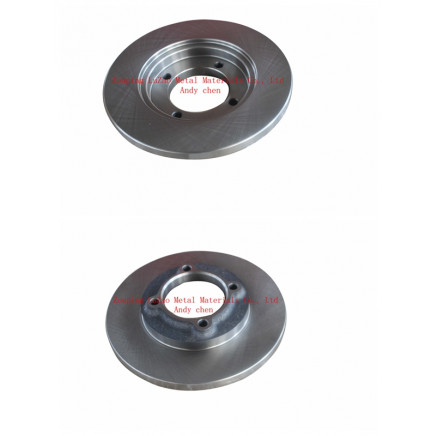

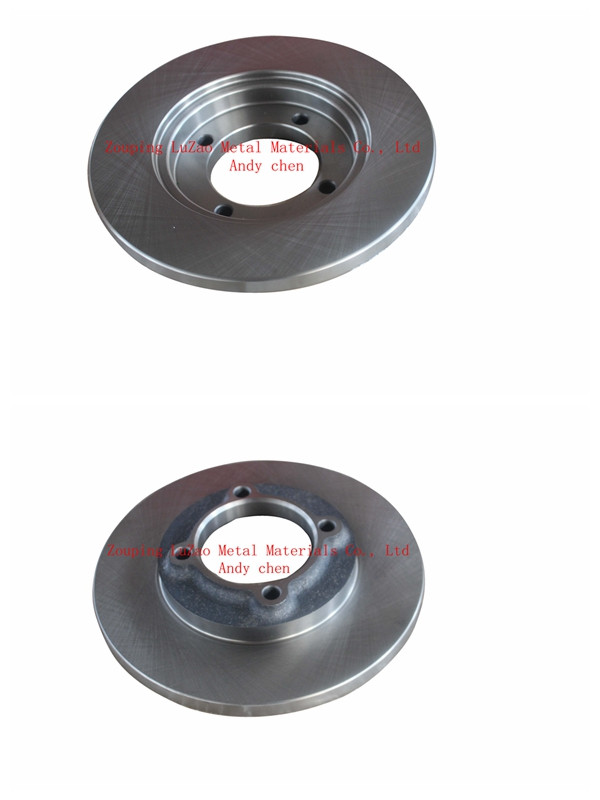

31034 ISO Certificated Solid Braking System, Disc Brake, Brake Pad, Brake Disc with High Cost Performance

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 8.0-40.0/ Piece

Price:$8.0 - $40.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 27, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:31034/ DA01-33-251

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:37*219mm:Position:Front

Number of Holes:4:Solid or Vented:S

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Port:Qingdao

Export Markets:North America, Eastern Europe, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:luzao

Packing:as Your Request

Standard:ISO/TS16949 Certificate

Origin:Zouping, Shandong

HS Code:87083099

Production Capacity:100, 000pieces/Month

Product Description

Product details:

Type	Brake Discs
OEM Number	DA01-33-251
Height	37mm
Outer Diameter	219mm
Centering Hole Diameter	75mm
Pitch circle diameter	94mm
Brake disc thickness	13mm
Minimum thickness	11mm
Solid or Vented	S
Number of Holes	4
Weight	3kg
Certification	ISO9001, TS16949
Size	37*219mm

Place of Origin	China (Mainland)
Price:	Negotiable
Minimum Order Quantity:	100 Pieces
Port:	Qingdao, China
Packaging Details:	as your requirement
Delivery Time:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	500 Tons per Month

Product Description
� Brake Disc 5119 Specifications:
� 1) Material: iron
� 2) Long service life & stable performance
� 3) 100% crucial dimension inspection
� 4) 100% qualification

Additional Information
