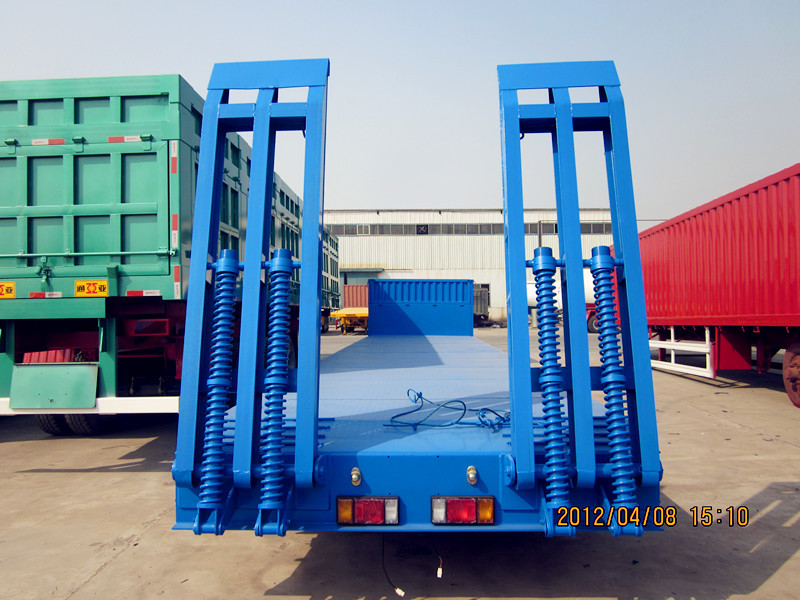

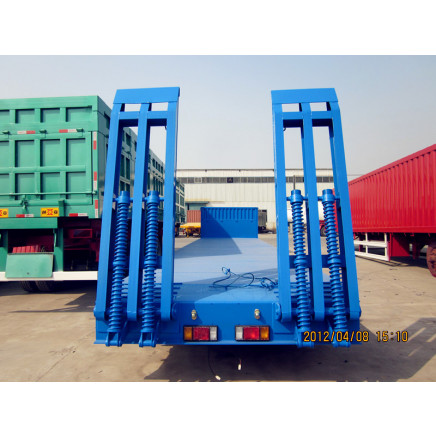

30t-80t Carry Capacity Gooseneck Lowbed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 18900/ Piece

Price:US $18900.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 04, 2013 To Aug 04, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTY6300GHY

Type:Semi-Trailer

Certification:ISO

Size:13000*3000*1550

Suspension:Common Mechanical Suspension

Plate:5mm Diamond Steel

Gooseneck:with

Axle:13t/16t, Fuwa

Leaf Spring:10PCS, Intensify

Light:LED

Material:Steel

Scale:Heavy Duty

Load Capacity:30t-80t

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Product Description

30T-80T carry capacity China gooseneck lowbed semi trailer

1. 12 month quality guarantee
2. More than 6 years experience of exporting
3. Strong frame beam and ladder

Low bed semi trailer	Standard specification
Gross Weight	11-13 tons
Outer side dimension(mm)	13000mm3000mm1270mm(working height)
Loading Capacity (Ton)	30-80 ton
AXLES	13 T or 16T , 3 AXLES
Tire	11.00R20 12pieces or optional
Rim	8.00_20 12pieces or optional
Suspension	mechanical suspension
Spring leaf	10 pieces, intensify
King pin	JOST brand 2.0" or 3.5"
Support leg	JOST brand D200T
Ladder	A pair of ladder
Main beam	Height: 500mm, upper plate is 20mm, middle plate is 10mm, down plate is 20mm side beam is 25#
Platform	4mmdiamond platform
Brake chamber	4 double and 2 single chambers
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m0.5m0.5m
