30m3 Tipper Semi-Trailer/Dump Truck (WL5250ZX)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$25800.0 - $26800.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 26800/ Piece
5.0	US $ 25800/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From May 04, 2015 To Aug 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL5250ZX

Type:Semi-Trailer

Certification:ISO9001, CCC, ISO/TS16949

Wheel Base:4700

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Carbon Steel

Condition:New

Scale:Heavy Duty

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:in Nude

Origin:CHINA

Production Capacity:10, 000 units/year

Product Description

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Please contact us to know more.

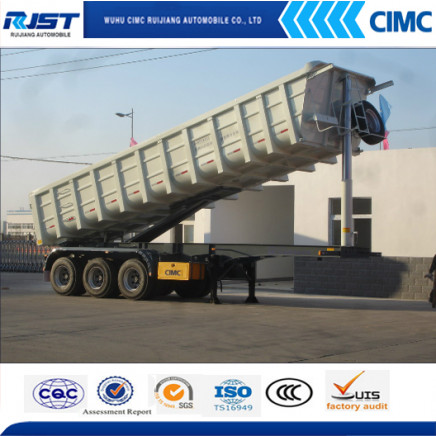

U style tipper semi trailer
High strength steel material
About 30m3 loading capacity.

PARAMETER	Outline Dimension(mm)	LWH: 10,000X2480X3091(MM)
	Inner Dimension	LWH: 9,897X2300X1500(MM)
	Axle space(mm)	4700mm+1310mm+1310mm
	Tare weight	8500KGS
	Box Capacity (m3)	30
OEM	Landing gear	JOST A400
	Kingpin	3.5" king pin, JOST
	Brake system	Dual line pneumatic brake system. WABCO brake valve
	Abs	No
	Brake chamber	Type 30/30 spring brake chamber
	Suspension	Spring suspension
	Axle	FUWA square axle, 13 ton capacity/set,3pcs
	Tire	11R2012Pcs
	Rim	8.0-2012 Pcs
	Tool box	1(1m)
	Spare tire carrier	2units
OTHERS	Cylinder	HYVA FE214-7130
	Box Material	Q700
	Box Thickness	Bottom: 5mm	Side: 5mm
	Painting	As customer's request
