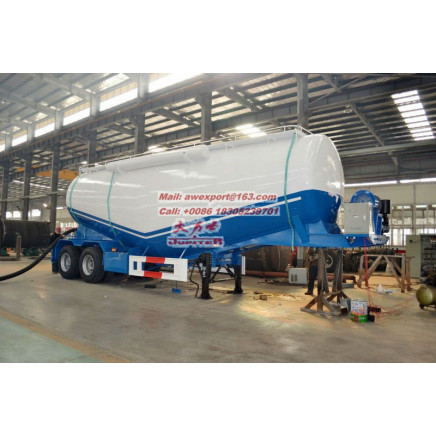

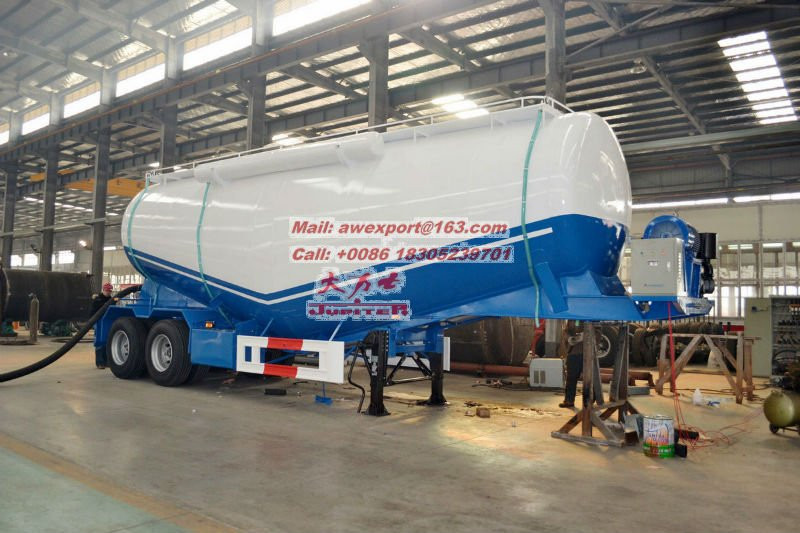

30cbm Bulk Cement Tanker Carrier Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25000/ Piece

Price:US $25000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Feb 07, 2015 To Apr 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9350GSN

Type:Suspension

Towing Pin Material:Alloy Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Volume:40cbm

Payload:50t

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:jupiter

Packing:Nude or as Customer?s Requirement

Standard:12500*2495*3600

Origin:China

Production Capacity:1000 PCS Per Year

Product Description

30CBM three axle bulk cement tanker semi trailer for Kenya Market.

Specification

32, 000 liter

36, 000 liter

40, 000 liter

Dimensions

Total Length

9500mm

12500mm

13000mm

Wheelbase

1310+1310

1310+1310

7200+1310+1310

Height

3600mm

3600mm

3650mm

Width

2495mm

2495mm

2495mm

Weight

GVW

33500KG

37500KG

45000KG

Kerb Weight

10500KG

11500KG

12000KG

Rated Payload

23000KG

26000KG

33000KG

TANKER

Material Mild Steel

Shape Self bearing tank with maximum section shape with low centre of gravity

Thickness of shell 6mm

Thickness of dish 6mm

Compartments 6

Tank top accessories

Aluminium ladder and foldable handrail

Walkway 400mm wide, with anti-slip material in the front of reach the manholes,

Not covering the complete length of the tank.

Tank equipment

Each compartment is equipped with:

Manhole Aluminium manhole cover DN500 with filling opening DN250

Pressure/vacuum valve

Bottom valve 4''with manual control in locker

API couplings 4'' adaptors

Discharge method

Gravity discharge

Running gear

FUWA axles 3x13T double wheels

12 steel rims and tyres 11.00R20

2" kingpin

2-geared mechanical operated landing legs

Braking system

Double line air brakes Mechanical parking brake

Electric installation

Complete 24V system in explosion proof installation

Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights

Painting

All steel parts are steel sand blasted before painting

Tanker and chassis is painted according customers wish

Steel blasting to SA2.5

Accessories

Bonding reel with 15m cable 5mm

Toolbox

Discharge cabinet with lock

Hose carriers on both sides

Mudguards

Fire extinguisher

Preparation of bottom loading

Revolving light (on top of the tank rear left side)

OPTION

AXLE: BPW, SAF

TYRE: GOODYEAR, HANKOOK, DOUBLE COIN,

SUSPENSION: AIR SUSPENSION

BRAKE SYSTEM: WABCO, KNORR

Can produce according to the customers' requirements.

We can produce the products according to the drawings
