3004 Aluminum Alloy Sheet

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:US $10.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 10/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 27, 2013 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:YX65-400/420/430

Usage:External Wall, Roofing Sheet

Function:Fireproofing, Anti-static, Mould-proof

Surface Finishing:Coating

Export Markets:Global

Product Description

Al-Mg-Mn alloy material, which is usually used in Trump metallic roof and facade systems, is AA3004 alloy that accords with DIN1725 standard. It is light, weatherable, stain-resistant, and easy to be welded, and its structure strength is moderate. The life-span of the raw material can be as long as 50 years under normal usage.

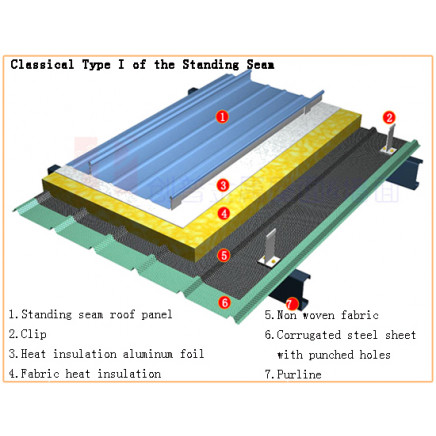

Characteristics of the aluminum alloy sheet system
1. With a long history and wide application, this maintenance system has a mature force-transferring structure, suitable for roofs or walls with ? 1.5° Grade.
2. The system can be executed on spot as its construction is very easy, with a wide span (? 120m) of single panels usually without joints or screw holes. And, the lock seam is very stable.
3. Excellent drainage and anti-seepage performance with unique anti-heat-expansion performance as well as safe anti-wind-pressure performance.
4. With an advanced secondary molding technique (melon-peel technique and sector curve technique), this system can easily settle problems of single or double curved surface overlay.
5. High quality, low power-consumption, practical, good looking and environ

Thickness	Width
Thickness	450~900	900~1400	1400~1800
0.7~0.9	0.05	0.06	0.08
0.9~1.1	0.06	0.08	0.1
1.1~1.7	0.1	0.1	0.13

Table of chemical elements

Type	Chemical elements
Type	Fi	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Al	others
3004	0.3	0.7	0.25	1.0~1.5	0.8~1.3	/	/	0.25	Remaining amount	0.15

Table of dynamic performance

Type	Status	Thickness	Tensile strength	Yield strength	Elongation rate	thermal expansion coefficient ?
3004	H24	0.5~1.3	225~265	?175	3	23×10 -6
	H34
	H44
