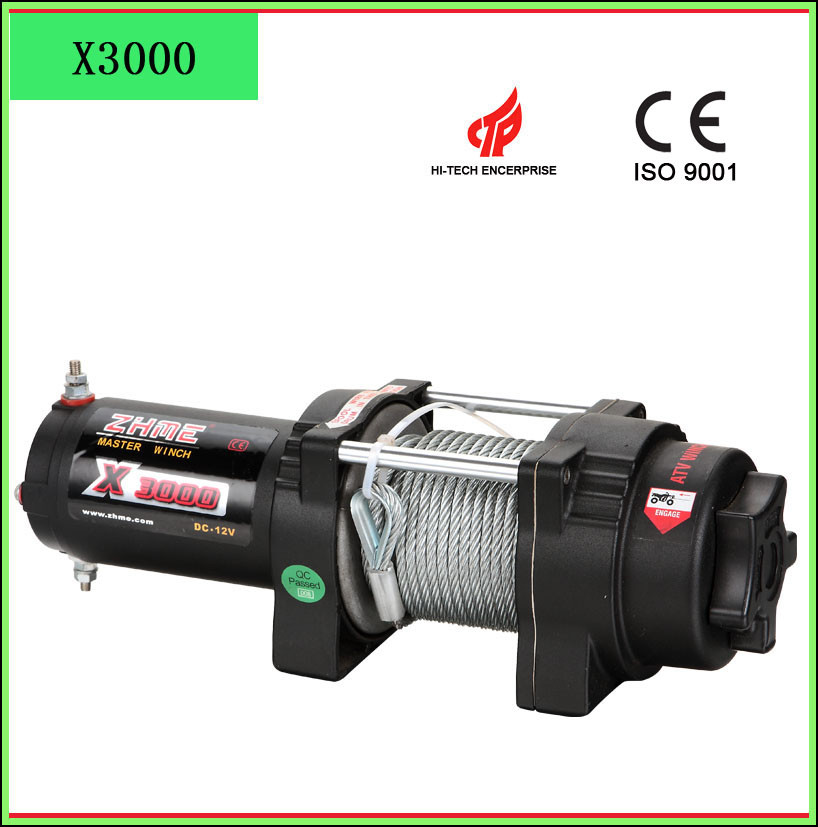

3000lbs Small Electric Winch

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$64.0 - $70.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 70/ Piece
1000.0	US $ 64/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 09, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X3000

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:4-Way

Electric Winch Model:ATV

Brand:Zhme

Applicable Environment:Beach

Certification:CE

Finshing:Black Texture

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Carton Box, Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000 PCS /Month

Product Description

Rated ling pull: 3000lbs ( 1360kgs ) single line.
Motor: Permanent magnetic motor 1.5HP/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 138: 1
Clutch: Sliding Ring Gear
Braking Action: Automatic in the drum
Fairlead: 4-Way roller fairlead
Wire Rope: 4.8mm * 12m
Drum size: 50mm X 76.5mm
Dimensions: 334mm X 114mm X 120mm
Mounting bolt pattern: 124mm X 76mm
N. W.: 165lbs (7.4kgs)
Packing: 440mm X 250mm X 220mm ( 1000 PCS per 20' container )

	PERFORMANCE
	PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs		0	1000	2000	3000
	Line pull	Kgs		0	454	907	1360
	Line speed	FPM		24.5	14.7	10.5	6.9
	Line speed	MPM		7.5	4.5	3.2	2.1
	Motor current	Amps		15	75	120	175


Line pull and cable capacity	Layer of cable		1	2	3	4
	Rated line pull per layer	Lbs	3000	2520	2170	1870
	Rated line pull per layer	Kgs	1360	1140	985	849
	Cable capacity per layer	Ft.	7.2	15.7	25.9	39
	Cable capacity per layer	M	2.2	4.8	7.9	12
