3000lbs Pulling DC 12V Electric Winch with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 62/ Piece

Price:US $62.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Dec 04, 2014 To Feb 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X3000S

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:ATV

Certification:GS, CE

Item:X3000s

Rated Line Pull:3000lbs(1361kgs) Single Line

Motor:Permanent Magnetic Motor1.5HP/1.0kw DC 12V

Gear Train:3 Stage Planetary Gear 198:1

N.W.:10kg

Dimensions:334mm X 114mm X 120mm

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Color Box

Standard:CE, SGS, ISO9001: 2008

Origin:Zhejiang, Ningbo

HS Code:84253190

Production Capacity:China

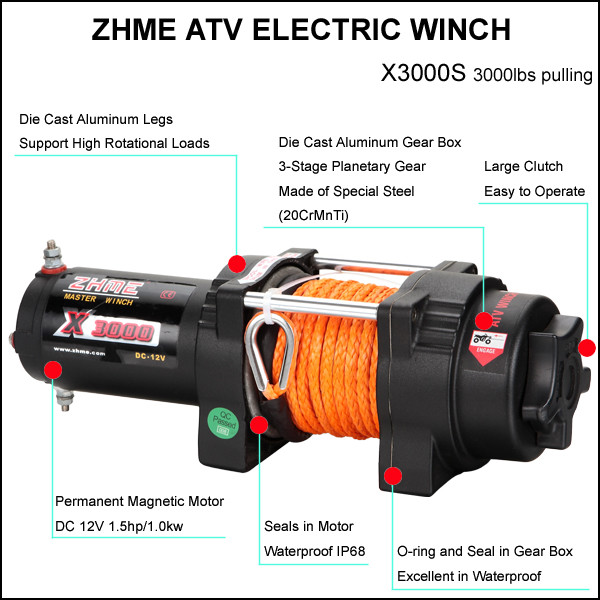

Product Description

Motor: High performance permanent magnetic motor, provides fast line speed.
Contactor: 200 Amp Rated contactor, 12V DC.
Gear Box: Reducednoise, waterproof, and dependable. 3 stage planetary gear of 20CrMnTi, hardened gears for long life, a solid power multiplier.
Brake: Fully independent and automatic braking ensures safety and reliability.
Waterproof: Seals for motor and gear box, o-ring for gear box, Cold drawn steel tube, high strength could protect wire rope well and no damage when braking.

Specifications
Item	X3000S
Rated Line Pull	3000lbs(1361kgs) single line
Motor	Permanent magnetic motor1.5hp/1.0kw DC 12V
Gear Train	3 stage planetary
Gear Ratio	198.: 1
Clutch	Sliding Ring gear
Braking Action	Automatic in the drum,independent mechanical brake
Fairlead	Aluminum Hawse Fairlead
Synthetic Rope	4.8mm x 12m
Drum Size	50mm x 76.5mm
Dimensions	334mm x 114mm x 120mm
Mounting Bolt Pattern	165mmX76mm
N.W.	10kgs
Packing:	440mm x 250mm x 220mm, (1000pcs per 20' container)
