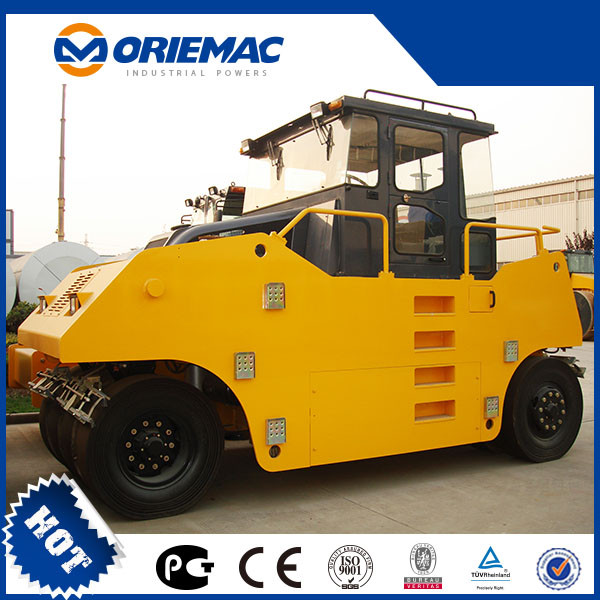

30 Ton XCMG Pneumatic Tire Roller XP302

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000/ Piece

Price:US $10000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Sep 25, 2014 To Dec 25, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XP302

Type:Road Roller

Working Method:Wheeled

Axle:Uniaxial Monowheel

Color:Yellow

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude, Suitable for Shiping

Standard:ISO

Origin:Jiangsu, China

Production Capacity:100 Sets/Month

Product Description

30 Ton XCMG Pneumatic Tire Roller XP302

Rated Power: 132KW
Wheel Base: 3840mm
Operating Mass: 30000kg
Compaction width: 2365mm
Ground pressure: 250~480Kpa
Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Unique structure
The transmission system adopts the hydraulic transmission with infinitely variable speeds. The start of the torque converter and the speed change are stable and without impact, reducing the shear stress to the road, and improving the compacting quality. The torque converter adopts hydrodynamic drive, which makes the compactor have adaptivity, ensures the diesel engine and the transmission system work under the rated working condition, and prolongs the service life of the compactor.
Safety and reliability
The brake system includes emergency brake and hand brake. The emergency brake adopts air over oil shoe brake system, ensuring the safety, durability and reliability of the machine. The hand brake adopts diaphragm spring brake, it supplements the foot brake and is restricted by the foot brake, featuring safety and reliability.

Model	Unit	XP302
Min. working weight	kg	13900
Max. working weight	kg	30000
Axle load,wheels	kg	1100
Static linear load	kg	15000
Theoretical gradeability	%	20
Min. turning external radius	mm	9000
Min. ground clearance	mm	290
Tyre overlap amount	mm	70
Front wheel swing range	mm	±50
Compaction width	mm	2365
Ground pressure	kPa	250~480
Wheel base	mm	3840
Travel speed	km/h	0~8
	km/h	0~16
Tyre specification		13/80-20
Tyre tread		Smooth
Tyre amount		Front 4 rear 5
Engine model		SC8D180G2B1
Rated speed	r/min	2000
Rated power	kw	132
Engine oil consumption	g/kW•h	232
Water tank capacity	L	1100
Hydraulic oil tank capacity	L	100
Fuel tank capacity	L	180
