30 Cubic Meter Sinotruk HOWO 8X4 336/371HP Tanker Truck (JYJ5312GJY)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

30 Cubic Meter Sinotruk HOWO 8X4 336/371HP Tanker Truck (JYJ5312GJY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$45000.0 - $46800.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 46800/ Piece
5.0	US $ 45000/ Piece

Trade Terms: FOB, CFR

Payment Terms: L/C, T/T

Price Valid Time:From May 15, 2015 To Aug 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JYJ5312GJY

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Tank Volume:15001-30000L

Drive Wheel:8×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Engine:Wd615.69 336HP

Fuel:Diesel

Type:Fuel Tank Truck

Brand:Sinotruk

Tanker Capacity:30 Cubic Meter

Driving Axle:St16 Drive Axle

Tyre:295/80r22.5 Tyre with 1 Spare Tyre

Maximum Drving Speed:90km/H

Cab:Sinotruk Hw76 Lengthen Cab, Single Bunk

Size:11900X2496X3025mm

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Standard:CE

Origin:Jinan

HS Code:87042240

Production Capacity:300 Sets/Month

Product Description

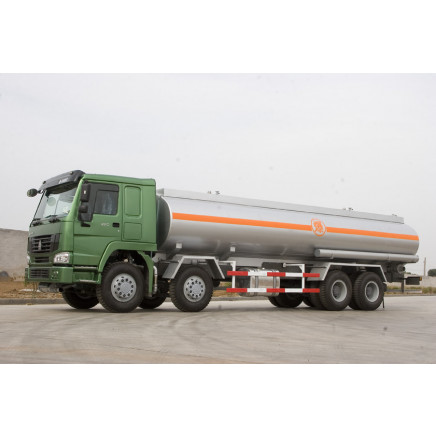

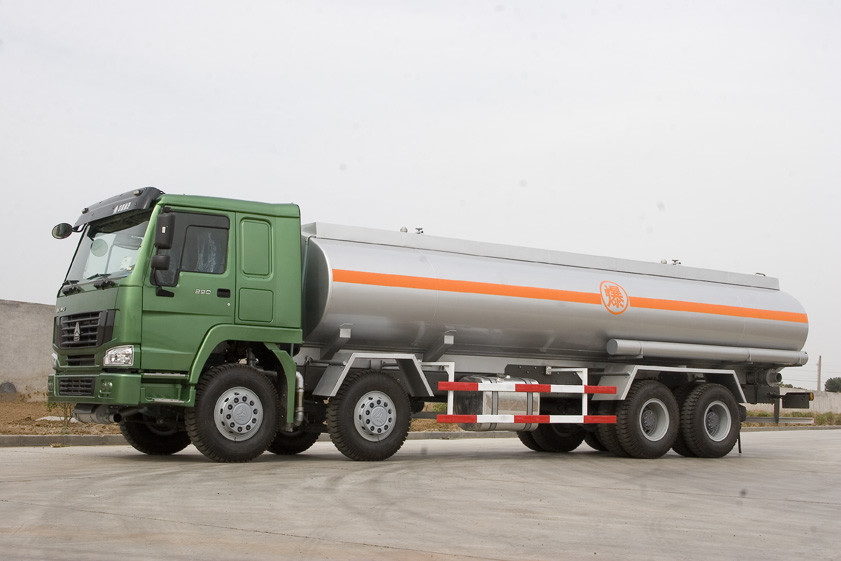

30 Cubic Meter Sinotruk HOWO 8x4 336/371HP Tanker Truck(JYJ5312GJY)

Products Description:
Oil tank truck or refueller or fuel tanker or fuel tank truck is mainly suitable for transportation and storage of petroleum derivatives which include gasoline, diesel oil, crude oil, lubrication oil coal tar and more.
It comes with many functions like oil refueling and carrying according to different operating environments.
Oil tank truck is made of tank, power take-off device, transmission shaft, gear oil pump, pipe network system, etc. And five components oil pump, two way ball valve, tee and four way ball valve, oil screen and pipeline.

Main Speicifications:

Chassis Model		JYJ5312GJY
Engine	Model	WD615.69	WD615.47
	Horsepower	336	371
	Maximum output Kw/r/min	247/2200	273/2200
	Maximum torque N.m/r/min	1350/1300-1600	1460/1300-1600
	Type	6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Bore x Stroke	126x130mm
	Valve	2
	Displacement	9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan

Cab	SINOTRUK HW76 lengthen cab, single bunk
Clutch	SINOTRUK ?430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW15710 transmission ,10 forward and 2 reverse
Front Axle	SINOTRUK HF7 Front Axle
Steering	German ZF8098 Steering Gear Box ,hydraulic steering with power assistance,Ratio:22.2-26.2
Rear Axles	ST16 drive axle
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake
Tyres	295/80R22.5 tyre with 1 spare tyre Option:12.00R20 radial tyre
Oil Tank	400L
Delivery date	Within 30 working-days after receipt advance
Weight in kg	Gross vehicle weight 31000 Front axle loading capacity 7000 Rear axles loading capacity 16000
Performance	Maximum drving speed (km/h) 90 Fuel consumption (1/100 km) 38
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

Maintenance knowledge of fuel tank truck:
To prolong the service life of oil tank truck, maintenance of oil tank truck is a must. The maintenance common sense includes oil and filter change of engine system, renewal of easily damaged parts such as belt, spark plug, storage battery, brake pad, clutch disc, shock absorber, etc. In addition to this, routine maintenance also embraces auto beauty like car wash, complete surface care, and interior trim care.
