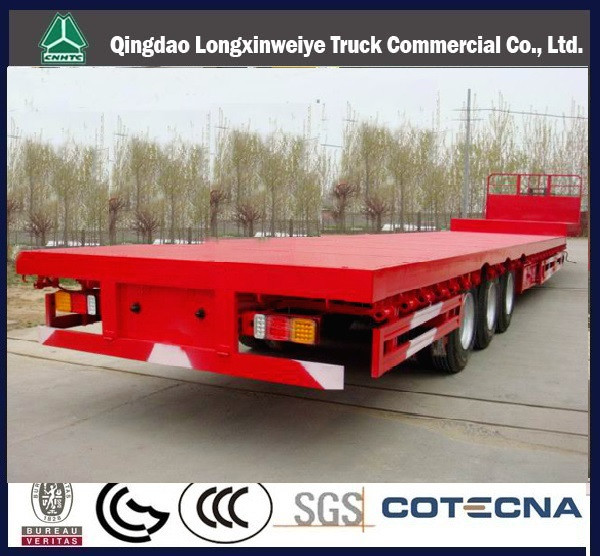

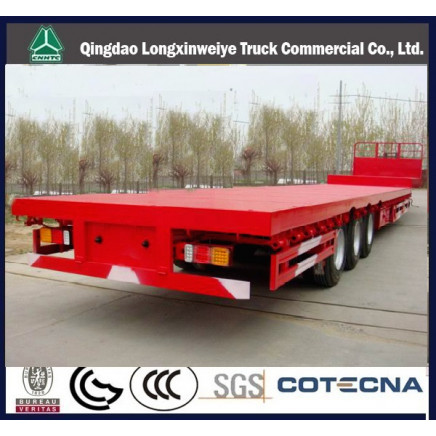

3 Axles Container 40ton Flat Bed Semi-Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 11800.0-14280.0/

Price:$11800.0 - $14280.0 / Unit

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 22, 2014 To Jan 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZJV9400TDP

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Condition:New

Power:Diesel

Transmission Type:Manual

Emission Standard:No Emission

Truck Type:Tow Truck

Tire Design:Radial

Seats:?5

Tire Type:Inner Tube

Load Capacity:40t

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:Europe standard

Origin:Qingdao, China

Production Capacity:6000 Units/Month

Product Description

3 Axles Container 40Ton Flat Bed Semi-Trailer

We can supply flat bed semi-trailer, container semi-trailer, low bed semi-trailer and special semi-trailer. All the trailers can meet Europe standard. Also can design the trailer as your demand.

Features:
1) Max. Total mass: 35, 200kg
2) Kerb mass: 7, 200kg
3) The loading weight of the fifth wheel: 11, 250kg
4) Min. Turning circle: 13.0m
5) Appearance max. Length: 12, 450mm
6) Dimensions max. Width: 2, 498mm
7) Max. Height: 1, 540mm
8) Wheel base: 7, 190 + 1, 310 + 1, 310mm
9) Engine: WD615.87
10) Output: 280kW/2, 200rpm
11) Torque: 1160N. M/1, 100 - 1, 600rpm
12) Rear suspension: 1, 950mm
13) Front suspension: 690mm
14) Clutch: 420
15) Transmission: Fuller 9
16) Tire: 12.00 - 20, 11.00 - 20

3 axle Container 40ton Flat Bed Semi-Trailer
item	unit	quantity	notice
overall dimension			12380length2500width1520height, detail according to the drawing
axle	piece	3	13T standard
tyre	piece	12	11R20-16PR
rim	piece	12	8.0-20
leaf spring	piece	6	90width10pieces13 thickness
braking system	set		2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters.
electrical system	set	1	24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors
suspension	set	3	Our standard Suspension
relay valve	whole vehicle	1	domestic brand
landing gear	pair	1	19'' FUWA
kingpin 2"	piece	1	50# welded type
tie-in	piece	2	haldex
chamber	piece	2	stored chamber 2 units T30/30
upper and lower wing plates			14/16mm,width146mm, using the highly quality Q345 steel,
twist locks		8	can load 140',220' containers
main beam			height: 500mm webplate:6mm using the highly quality Q345 steel
reflectors			Red triangle reflectors at the rear of the trailer and on side
Shotblasting and paint			Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns.
spare tyre carrier		2	standard
color			according to required on customer
payment terms			30% TT in advance,the balance should be paid 10 days prior to the delivery time
delivery date			15 working days after the deposit and the confirmation of the drawing.
