3 Axle Tipper Semi-Trailer/Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25000.0-30000.0/ Piece

Price:$25000.0 - $30000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 02, 2015 To Sep 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL5200ZB

Type:Semi-Trailer

Load Capacity:50t

Certification:ISO9001, CCC, ISO/TS16949

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

Material:Steel

Condition:New

Scale:Heavy Duty

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude or in Container

Standard:ISO9001 CCC

Origin:China

HS Code:87163990

Production Capacity:10000units/Year

Product Description

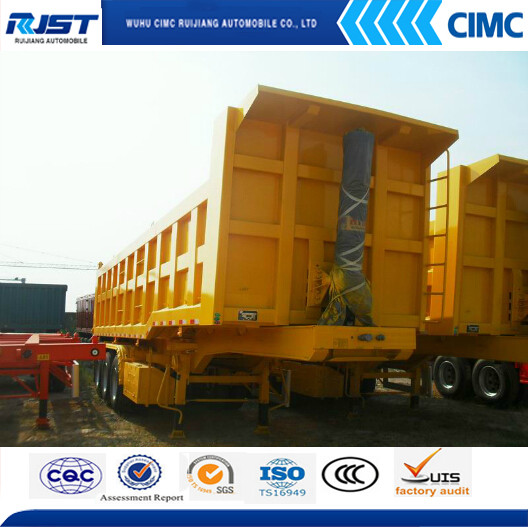

3 axle tipper semi-trailer
Cargobox: 10000X2300X1500(mm)
Bottom thickness: 8mm
Side thickness: 4mm
Axle: FUWA 13T
LandingLeg: 28T BuaHua
Tyre: 11: 00R 20
Lifting: HYVA brand

CIMC direct factory three axles tipper semi trailer
PARAMETER	Outline Dimension(mm)	LWH: 10,000X2480X3091(mm)
	Inner Dimension(mm)	LWH: 8,522X2300X1500(mm)
	Axle space(mm)	4700mm+1310mm+1310mm
	Tare weight(kg)	9500KGS
	Box Capacity (m3)	30-31M3
OEM	Landing gear	JOST D200
	Kingpin	3.5" king pin, JOST
	Brake system	Dual line pneumatic brake system.
	Abs	NONE
	Brake chamber	Type 30/30 spring brake chamber
	Suspension	Spring suspension
	Axle	FUWA square axle, 13 ton capacity/set,3pcs
	Tire	11R20 12Pcs ,made in china
	Rim	8.0-20 12Pcs,made in china
	Tool box	1(1m)
	Spare tire carrier	2 units
	Lights	LED
OTHERS	Cylinder	HYVA FE214
	Box Material	HARDOX t=5mm
	Box Thickness	HARDOX t=5mm	HARDOX t=5mm
	Painting	As customer's request
QUOTATION	Payment:30% down payment,70% balance by T/T before delivery or by irrevocable L/C at sight

	Delivery time: 30days after received the deposit and confirmed the sales contract.
