3 Axle LPG Tanker Trailer Tri Axle 56, 000liters LPG Semi Trailer for Nigeria

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

3 Axle LPG Tanker Trailer Tri Axle 56, 000liters LPG Semi Trailer for Nigeria

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 35268.0-56700.0/ Piece

Price:$35268.0 - $56700.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 08, 2015 To Jul 13, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Heavy Industry Co.

Type:Axle

Load Capacity:15T

Certification:ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, SGS

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Cross Type

Towing Pin Diameter:50mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Candle Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:2

Tire Number:6

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Discripution:Factory Direct Sell LPG Semi Trailer

Function:Storage Pressure Vessel

Material,:Carbon Steel, Q345r, Q370r

Weight:5ton, 10ton, 20ton, 30ton, 40ton, 50ton

Volume:50000L 50cbm 50m3 80cbm 100m3

Loading Medium:LPG Propane, Ammonia Propylene Isobutane

Axle:BPW, Fuwa Brand

Tire:11r22.5 12r22.5

Accessories:Safety Valve Tool Box Extinguisherpressure Meter

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS

Origin:Hubei

HS Code:73110090

Production Capacity:800 Unit/Month

Product Description

3 axles LPG tank Semi Trailer

LPG Tank Semi Trailer is also called LPG Semi -trailer truck , LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality , safe, stable, etc features

Production notes:
1), Manufacturer, more than 10yrs professional experience.
2), Certificate ISO9001,3C, ASME
3),High quality, low price
4),Loading LPG volume 58.5m3
5),Small order can be accepted.Any color and logo will be available
6),Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
7)Products can be custom-made according to your design, or diversified needs.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of our LPG Tank trailer.please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: CAROLINE GAO +8615117073372
Technical Parameter of 3 axles CLW LPG Tank Semi Trailer :

Factory Direct Sell Heavy Duty Tri-axle LPG Tank Trailer 58cbm LPG LPG transport trailer 58000L ASME standard LPG Tanker Trailer for propane
Tare Weight	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

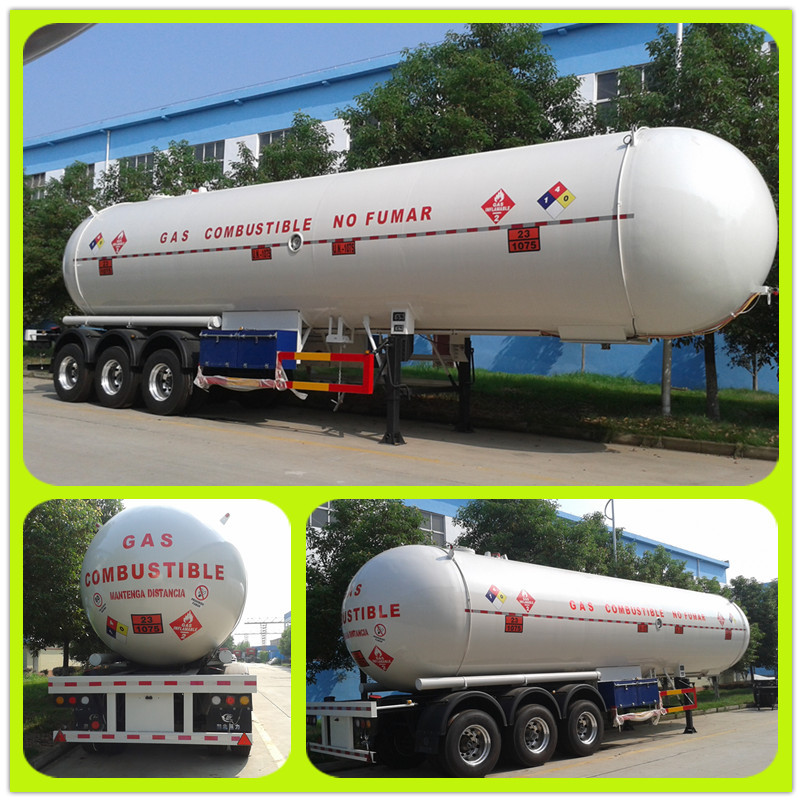

Photo for reference, finial product can be made according to exact requirements
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape
Total Volume(m3)		56CBM
Tanker Body Steel Sheet		Q345R/11.5mm
End plate		Q345R/11.5mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q345R manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q345
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345R,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final pain

Company Information

Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test.
The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection
