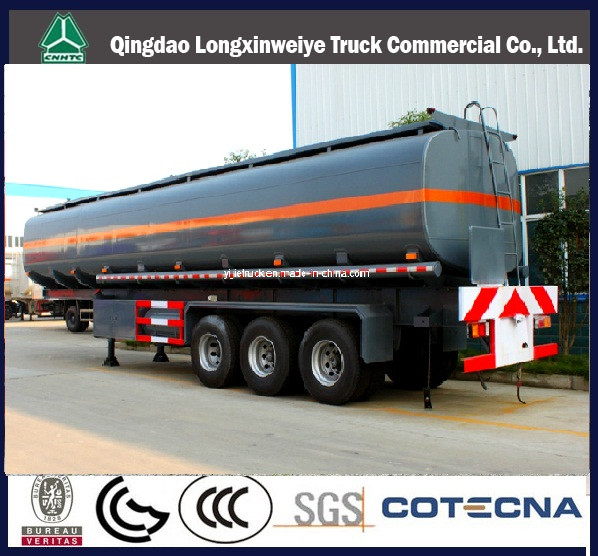

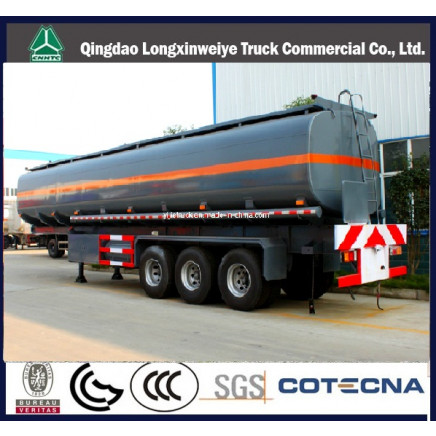

3 Axle Aluminum 45m3 Fuel Tank Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 38000.0-42000.0/

Price:$38000.0 - $42000.0 / Unit

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Jan 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JG9400GJY

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Axles:3

Volume:45cbm

Kingpin:3"

Material:Aluminum/Alloy

Scale:Heavy Duty

Certification:CCC, ISO

Components:Trailer Axles

Load Capacity:30t

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:Europe standard

Origin:Shandong, China

Production Capacity:10000 Units/Month

Product Description

3 Axle Aluminum 45m3 Fuel Tank Semi Trailer

The advantages of producing tanks from aluminum alloys:
1. Maximum solidity and lightness of the construction;
2. Reducing transport costs by 1 ton of the transported goods;
3. Improving safety of transporting hazardous goods (not subject to corrosion, wearproof, spark-proof)
4. The lightest vehicles, with maximum volume and a long service life for all types of cargo

The Aluminium Alloy semi trailers is applied to transport OIL, FUEL, DIESEL, WATER AND ALL KINDS OF LIQUEFIED CHEMICALS in a short or long distance. It's an ideal equipment to transport oil from oil storage field to oil plant, and transfer oil from refinery and wharf to oil storage field. It is also been used in refueling service station.

PARAMETER	Dimension(mm)	Lwh: 12972x2500x3750(mm)
	King pin setting(mm)	1715mm
	Kin pin plate height (mm)	1366mm
	Axle space(mm)	7060mm+1310mm+1310mm
	Tare weight	7500kgs
	Loading capacity	47000L (Valid 45500L)
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	Jost 2" bolted type
	Brake system	Wabco brake valve;
	Abs	4s/2M
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	Air bag Suspension
	Axle	Fuwa axle,13 ton capacity/set,3sets
	Tire	425/65R22.5-20pr , 6 pcs Double Coin Brand;
	Rim	13.0-22.5 6pcs, Aluminium Alloy
	Tool box	1
	Spare tire carrier	2
TANK SPECS	Compartment	Three,15000l/15000l/15000l
	Tank material	Aluminium Alloy, thickness 6mm,5mm
	Bulkhead and Bafflr	Thickness is 7mm
	Tank Shell	Thickness is 6mm & 5mm
	Shape of tank	Ellipse (double "d")
	Test pressure designed	36kpa
	Manhole	20"Aluminium Alloy Manhole Cover, C801-560,
	bottom valves	3, Aluminium Alloy
OTHERS	Oil Gas recovery System	Equiipped
OTHERS	Anti-overflow System	Equipped
