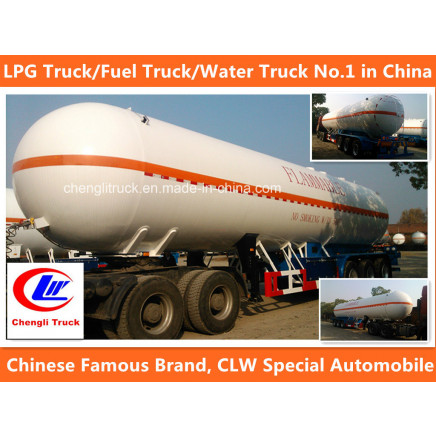

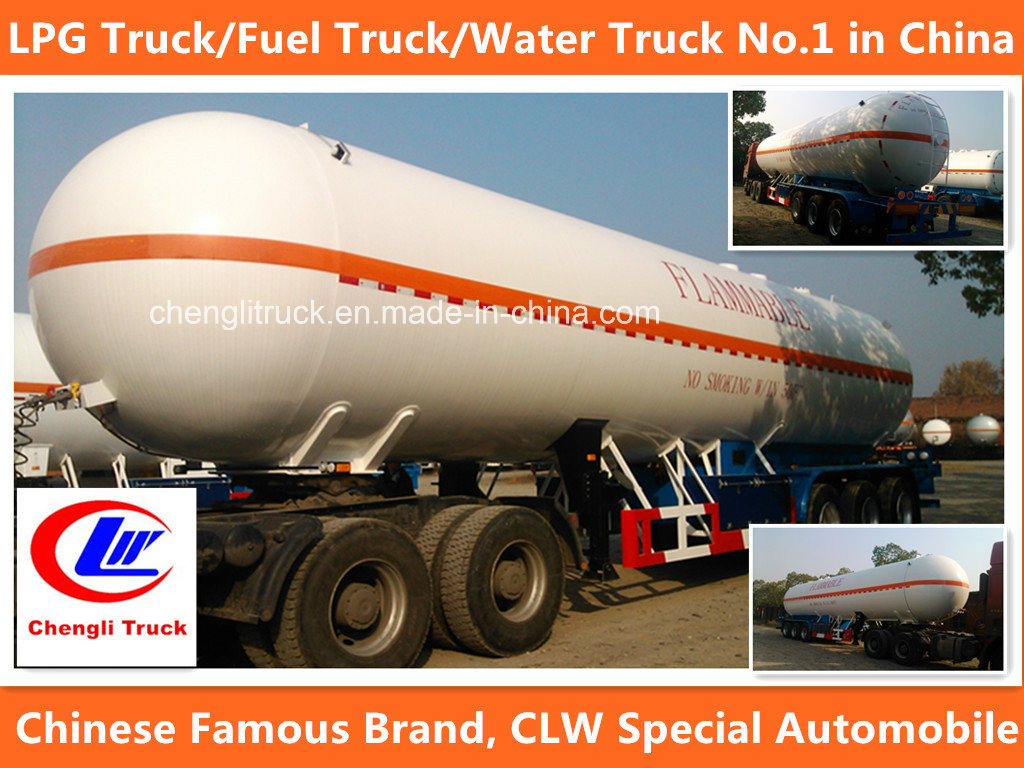

3 Axle 56cbm Heavy Duty LPG Truck LPG Tank Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

3 Axle 56cbm Heavy Duty LPG Truck LPG Tank Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 36900.0-43000.0/

Price:$36900.0 - $43000.0 / unit

Trade Terms: FOB, CIF, DDP, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jan 08, 2015 To Feb 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW9406GYQ

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Q370r or Q345r

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume of LPG Tank:47.58cbm-59.52cbm

Shape of End Plate:Ellipse or Round

Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42

Safety Control System:Safety Valve, Pressure Meter, Emmergency Shutoff

Baffle:4-5 PCS Inside

LPG Trailer Material:Q345r or Q370r

LPG Gas Trailer Axle:BPW 13ton or Fuwa 13 Ton

Filling Machinery:Optional

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS, ASME

Origin:Hubei

HS Code:73110090

Production Capacity:800 Unit/Month

Product Description

3 Axle 56cbm Heavy Duty LPG Truck LPG Tank Trailer
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

The structure of the LPG tanker Semi-trailer
Item	NAME
1	Tank
2	Safety valve
3	Indicator of Liquid level
4	Manhole cover
5	Main Chassis
6	Box for Loading and unloading hose
7	steel mudguard
8	Valve box and operation system
9	Side protecting rail
10	Landing gear
11	King Pin

Technical specifications

Items			Data	Items			Data
Semi-trailer	Kerb weight		16950 Kg	Tank	Design pressure		2.16 M pa
	Payload (Product weight)		23000 Kg		Design temperature		50 Degree
	Gross Vehicles Weight (GVW)		39950 Kg		Filling medium		liquid ammonia
	Capacity		54.76 m3		Tank material		16MnR
	Pressure of leak test		1.77 M pa		Corrosion allowance		1.0mm
	Vehicle Dimensions (L x W x H )		12620x2480x3900
					Tank mass		10720Kg
					Hydraulic test pressure		2.66 M pa
	Full load	Fifth wheel load	15970KN		External Dimensions Diameter× Thickness×Length		DN2420x14x12398
		Rear axle load	23980KN
	Max. vehicle roll angle		?350
	Design the limited velocity	Straight road	80 Km/h		Vessel's sort		The third kind
		Turning	20 Km/h		Service Years		Ten years
Urgent Discount Device	Type		QGY43-2.5	Safety Valve	Type		A412F-2.5-16
	Nominal pressure		PN2.5Mpa		Model		Inner full lift
	Nominal diameter	Gas phase	DN 25mm		Nominal pressure		PN2.5 MPa
		Liquid phase	DN 50mm		Nominal diameter		DN80mm
	Operation way		Hydraulic type		Opening pressure		1.86~1.94 MPa
	Closing time		?10 Sec		Closing pressure		1.49~1.55MPa
	Melting switch temperature		70±5 Degree		Complete opening pressure		<2.12 MPa
Indicator Gauge	Type		ZGM2.42/2.5	Loading & unloading valve	Valve type		YKAG-3.3-6 /YKAG-3.3-7
	Model		Rotary type		Model		Quick tie-in
	Nominal pressure		PN2.5Mpa		Nominal Diameter	Gas phase	DN25mm
	Surveying range		0~2400mm			Liquid phase	DN50mm
	Precision		2.5 Grade

NO.	Main parts of the tanker
1	Stiffening ring
2	Baffles
3	Pipe of safety valve
4	Body Shell
5	End plate
6	Pipe of indicator of liquid level
7	Manhole Cover
8	Seat for chassis
9	Pipe of gas phase
10	Pipe of thermometer
11	Pipe of liquid phase
12	Seat of landing gear
13	Seat of king pin

Other Parts
Ladder	1 unit at front of Tank
Guard on top of Tank	Zinc galvanized –guard-net
Oil hose box	Circular single hole tube, 1 unit on each side
Oil hose	2 unit, 3" x 6m size in black rubber
Side guard	cross bar-structure
Rear button guard	Fixed type
Work tank deck	Box type
Fire extinguisher box	2 unit at the back of each side 9Kg
Mud guard	Steel structure in trapezoid form
Lights and wire	24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle	3 axle
Axle	BPW brand long type in 2140mm including ECO system
Landing Gear	JOST Two-speed, manual operating, heavy duty landing gear
King Pin	JOST 2"standard bolt-in king pin
Suspension	Heavy Duty Mechanical suspension
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim	9.0-22.5 Steel rim
Tire	12R22.5 tubeless tire with one spare tire
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
ABS+EBS	WABCO brand
