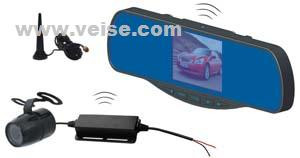

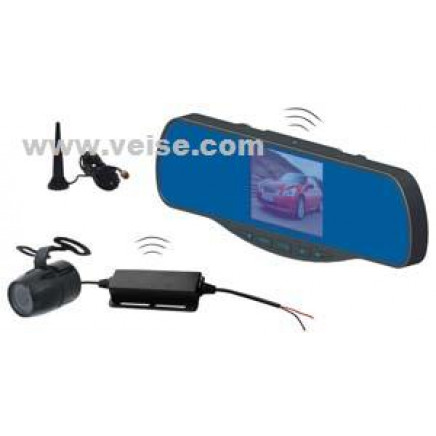

3.5" Wireless Digital Screen Rearview Mirror Monitor Backup Camera System(DF-3451)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Production Capacity:5000pcs/month

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-3451

Additional Info.

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Origin:China

Production Capacity:5000pcs/month

Product Description

*Free Voltage DC11-32 Volts Wireless Backup Camera System
*3.5" Digital Screen Rearview Mirror Monitor Built-in 4 CH 2.4GHz wireless receiver and CDS Sensor for Illumination of the Control Knobs, Monitor Automatically Activated on Detecting Wireless Signal, On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, Priority of Reverse Camera.
*Backup Camera with 2.4GHz Wireless Transmission Box Built-in Magnet, Easy installation.

PRODUCT SPECIFICATION

2.4GHz Wireless Transmission Backup Color Camera(MODEL:DF-8015FS)

Image Type: 1/3 Color CMOS

Horizontal Resolution:330TV Lines

Effective pixel:NTSC:510(H)X496(V);PAL:628(H)X586(V)

Usable illumination:3Lux(F:1.4)

Water resistance:IP66,Alloyed shell,Waterproof for outdoor use

Lens : 2.8mm optional,150 degree wide angle

Wireless Transmission Power box built in 2.4GHz transmitter and omni-directional antenna

About 100 meter wireless send distance without block

Wireless Transmitter box Power supply:DC12~24V/350mA

3.5" Wireless Receiving Rearview Mirror Monitor (Model:SP-351)

Display Resolution: 320RGB(H) X 240(V) dot

Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65

Brightness (cd/m2): 300

Contrast ratio: 300:1

Color system: PAL/NTSC

Built-in 4 CH(2.414/2.432/2.450/2.468)GHz wireless receiver

Estimate of 100 meter wireless receive distance without block

Receiving power: -80 dB

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Power consumption:DC11~32V

External dimension:L*W*T(252X80X21.5)mm

Weight Approx: 279g

Product Accessories

Auto Cigarette Lighter, Remote Control, User’s Guide
