2t Pulling 12V Snow Winch

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$150.0 - $250.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 250/ Piece
1000.0	US $ 150/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Nov 15, 2014 To Feb 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:x 4000

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Every Direction

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Snow

Certification:CE

Export Markets:Global

Additional Info.

Trademark:ZHME(can be OEM)

Packing:Netural Packages

Origin:China

HS Code:84253190

Production Capacity:100000PCS Per Year

Product Description

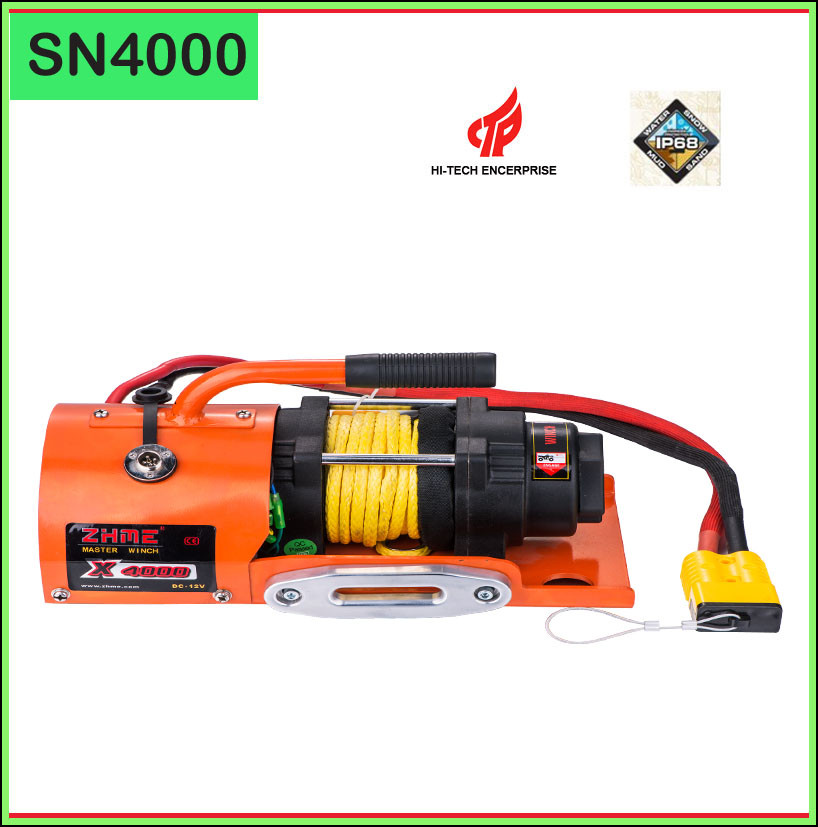

ZHME new 4000lb snow Winch
1. Portable winch with a handle
2.Neen't set up on the car
3.Large and easy to use clutch control

Rated line pull: 4000lbs(1818kgs) single line
Motor: Permanent Magnetic motor (1.6HP)/1.2kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 6.3mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 348mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 19LBS(8.6KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container

Accessories:
2t Pulling 12V Snow Winch

Line speed and motor current(first layer)
Line pull	lbs	0	1000	2000	3000	4000
Line pull	kgs	0	454	907	1360	1816
Line speed	FPM	16	10.5	9.2	7.2	4.9
Line speed	MPM	4.9	3.2	2.8	2.2	1.5
Motor current	Amps	15	70	105	135	180

Line speed and cablecapacity
Layer of cable		1	2	3	4
Rated line pull per layer	lbs	4000	3225	2700	2325
Rated line pull per layer	kgs	1816	1460	1255	1055
Cable capacity per layer	Ft.	6.6	14.1	23.6	39
Cable capacity per layer	M	2	4.3	7.2	12
