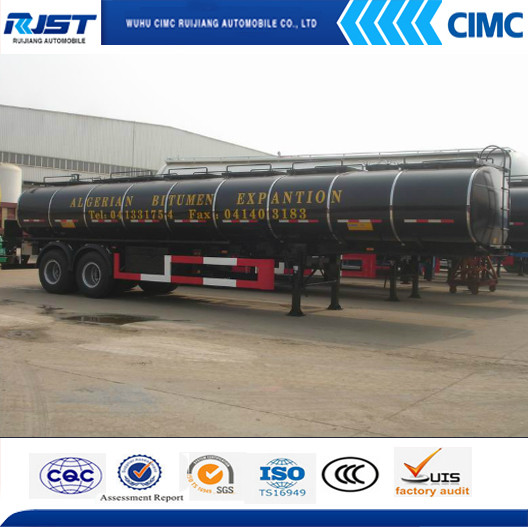

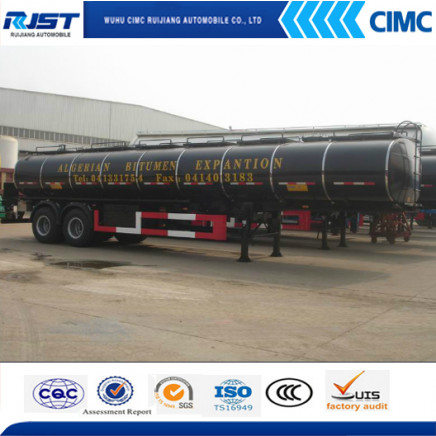

27m3 Bitumen Tanker Smei Tralier

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 24500.0-28000.0/ Piece

Price:$24500.0 - $28000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Aug 04, 2015 To Nov 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9401GRYE

Tank Volume:15001-30000L

Drive Wheel:6×4

Seats:?5

Storage:Bitumen

Condition:New

Size:27m3

Export Markets:Global

Additional Info.

Trademark:CIMC RUIJIANG

Packing:in Nude

Standard:ISO9001/Ts16949

Origin:China

Production Capacity:3000units/Year

Product Description

Effective Capacity:27m3
Tare Weight:8500kg
Overall Dimension:10450*2480*3250mm
Material of the tank body:carbon steel
Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Please contact us to know more.

27m3 Bitumen Insulation Fuel Tank Semi-trailer
Parameter	Effective Capacity	27m3
	Tare Weight	8500kg
	Overall Dimension(LWH)	1045024803250mm
	Material of Tank Body	carbon steel
	Thickness of Tank Shell	5mm
	Thickness of Bulkhead	5mm
	Thickness of Anti-surge Baffle	4mm
Insulation System	Heating Mode	burner
	Material of Insulating Cover	carbon steel
	Material of Insulating Layer	glass fiber thermal
	Thickness of Insulating Layer	50mm
OEM	Suspension	Spring Suspension
	Axle	2 units,13T FUWA
	Tire	8 units,11.00R20
	Rim	8 units,8.0-20
	Landing Gear	manual operation
	Kingpin	2'' bolted
Others	Toolbox	one set,1m
	Manhole	2 units
	Spare Tire Carrier	2 units
