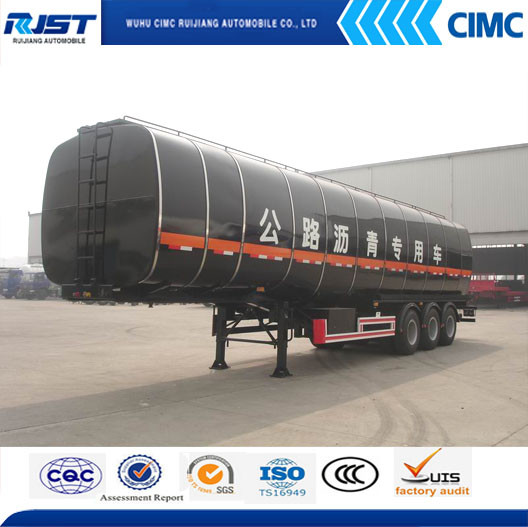

27m3 Bitumen Tanker Semi Trailer/Asphalt Tank

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25000.0-30000.0/ Piece

Price:$25000.0 - $30000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 23, 2015 To Sep 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9400GHYA

Tank Volume:15001-30000L

Drive Wheel:8×6

Seats:?5

Storage:Bitumen

Tire Type:Solid Tire

Condition:New

Size:27m3

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude or in Container

Standard:ISO9001 CCC

Origin:China

Production Capacity:5000PCS/Year

Product Description

Type: 27M3 Bitumen tanker semi-trailer

DIMENSION:
Overall Length: 10, 450mm
Overall Width: 2, 480mm
Overall height: 3, 250mm
King Pin Setting: 950 mm
Wheel Span: 6, 000 mm
Axle Spacing: 1, 300 mm

RUNNING GEAR:
Suspension: Single point suspension.
Axle: BPW axle 13, 000 kg capacity. X 2PCS
Brake: Dual line pneumatic brake system.
Parking Brake: Type 30/30 spring brake system on rear axles. NO ABS
Wheel: 10 holes 9.0-22.5 steel Disc wheel, made in China.
Tire: 11R20 steel radius tyre 8 PCS, DOUBLE COIN made in China
King Pin: 3.5" king pin, made in China.
Oil tank: 250L

LANDING LEG:
Two speed manual operation type with sand shoe, made in China.
ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light: Front marker lamp: White
Side marker lamp: White and red
Rear lamp: Red
Turn signal lamp: Amber
STRUCTURAL WEIGHT RATTING:
Tare Weight: 8, 500kg
Payload: 24000kg
G. V. W. R.: 32500kg
King Pin Weight: 13000kg
Axle Weight: 19500kg

TANK SPECIFICATION:
Tank Water Volume are of 27000 LT, Single Compartment
Tank material: Carbon steel, thickness 5mm.
Bulkhead: Thickness is 5mm.
Baffle: Thickness is 4mm approx.
Shape of tank: Ellipse(double "D").
Test pressure designed: 36kpa.
OUT MASK: Stainless steel

TANK ACCESSORIES AND FITTINGS:
Two manhole

Diesel Burner
Brand: RIELLO/Italy,
Model: PRESS 1G
Heating Pipe: 6 PCS D=102mm
Insulation Cladding: Fiberglass 50mm

load bitumen use asphalt bitumen tank
PARAMETER	Dimension(mm)	Lwh: 12950x2500x3950(mm)
	King pin setting(mm)	1350mm
	Kin pin plate height (mm)	1310mm
	Axle space(mm)	6650mm+1310mm+1310mm
	Tare weight(kg)	9500kgs
	Loading capacity	45000L
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	2" bolted type
	Brake system	Dual line pneumatic brake system.
	Abs	No
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	sping suspension
	Axle	FUWA axle, 13 ton capacity/set,3pcs
	Tire	11.00R20, 12 pcs
	Rim	8.0-20 12 pcs
	Tool box	1
	Spare tire carrier	2
TANK SPECS	Compartment	One
	Tank material	Carbon steel, thickness 5mm
	Bulkhead	Thickness is 5mm
	Baffle	Thickness is 4mm approx
	Shape of tank	Ellipse (double "d")
	Test pressure designed	36kpa
OTHERS	Fire extinguisher	2 pcs
	Manhole	One manhole
	Discharge hose	4x6m
	Hose carries	2 pcs
	Pump	/
