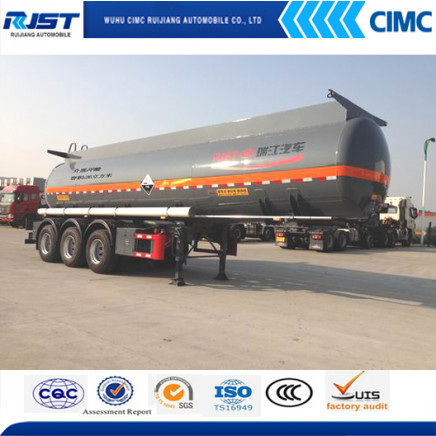

26m3 Corrosion Material Tanker Semi Trailer/Fuel Tank (WL9400GRYB)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$20000.0 - $22000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece
6.0	US $ 22000/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From May 22, 2015 To Aug 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9400GRYB

Certification:ISO9001, CCC, ISO/TS16949

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Carbon Steel

Condition:New

Size:26m3

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude

Standard:ISO9001 CCC

Origin:China

Production Capacity:10, 000PCS Per Year

Product Description

Chemical Liquid Tanker Semi Trailer Specification: (Liquid tank, Oil tank)
Material: Carbon stainless steel
Suspension: Steel or air bag suspension
Axles: 2 and 3 axles.
Able to be transportation in container

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 20, 000 units per year.

Please contact us to know more.

PARAMETER	Dimension(LWH:)	10250×2500×3750 mm
	King pin setting	1450mm
	Kin pin plate height	1359mm
	Axle space	4750mm+1310mm+1310mm
	Tare weight	8290 kg
	Loading capacity	27300L (Valid 26000L)
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	JOST/HOLLAND or others
	Brake system	Wabco brake valve or others
	ABS	4s/2M
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	Mechanical suspension leaf spring
	Axle	Fuwa axle, 13 ton capacity/set, 3sets
	Tire	12R22.5 12PR, 12 pcs Double Coin Brand;
	Wheel Rim	8.5-22.5 8 PCS
	Tool box	1
	Spare tire carrier	2
TANK SPECS	Compartment	two according to customers
	Tank material	Stainless steel, thickness 4mm
	Bulkhead and Bafflr	Thickness is 7mm
	Tank Shell	Thickness is 6mm
	Shape of tank	Square shape
	Manhole	20",SUS304
	bottom valves	3
OTHERS	Oil Gas recovery System	Equiipped
OTHERS	Anti-overflow System	Equipped
