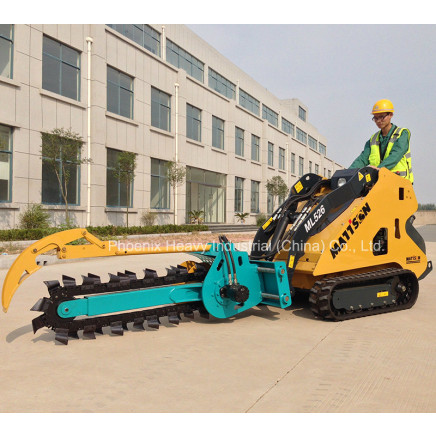

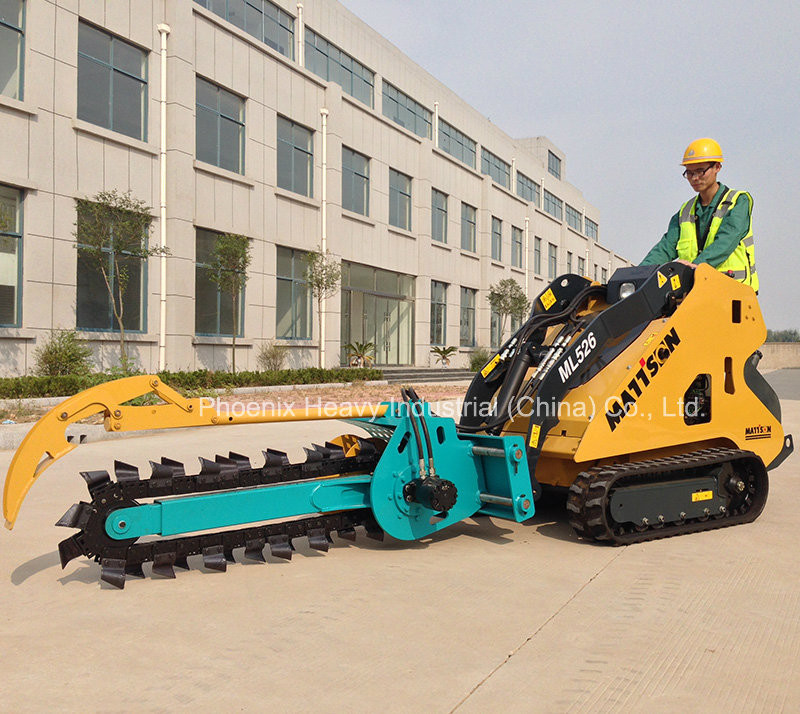

26HP Perkins Engine Mini Skid Steer Loader with Trencher

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$10000.0 - $11000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 11000/ Piece
4.0	US $ 10000/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From May 20, 2015 To Aug 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ML526

Type:Skid Steer Loader

Usage:Universal Type

Scraper Type:Pull Scraper

Transmission:Power Transmission

Walking Mode:Crawler

Load and Unload Method:Front Discharge

Engine Power:22HP

Certification:CE

Condition:New

Color:Yellow

Engine:Changchai Engine

Rated Operating Capacity:333kg

Export Markets:Global

Additional Info.

Trademark:PHOENIX

Packing:Nude Packing

Standard:CE

Origin:China Mainland

HS Code:84295100

Production Capacity:1000 Units/Month

Product Description

Mini Tracked Loader With CE Certificate.

Engine: Japanese Kubota, Perkins engine are optional.

Engine Power: 26HP with 3 cylinder diesel engine

Rated Operating Capacity: 333Kg

Operating Weight(out bucket): 1069Kg

Big capacity plastic fuel tank

Heavy-duty 2-stage air cleaner

Light footprint: 5.1psi(35KPa) ground pressure

45 lpm auxillary hydraulic flow

Model		ML522
Moving type		crawel type
Max. Length (without bucket)		1954 mm
Max. width		1040 mm
Max. height		1524 mm
Speed		0-15km/h
Rated operating capacity		330kg
Tipping capacity		953kg
Operating weight (with bucket)		1069KG
Engine	Type model	Perkins engine
	Fuel/cooling	Diesel/Liquid
	Rated speed	3000 r/min
	Power	26hp
	Oil tank capacity	34.07L*2
Hydraulic system	Hydraulic oil flow	45 L/min
	Traveling pressure	210bar
	Working pressure	175bar
	Byfraulic tank capcity	53L
	fittings	Quick coupler
Electrical system	Battery capacity	55Ah
	System valtage	12v
Optional attchments		4 in 1 bucket
		Auger drive
		Two set quick connector
