25t 30t 35t 300HP Shacman a`Long 6X4 Tipper Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

25t 30t 35t 300HP Shacman a`Long 6X4 Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$40000.0 - $48000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 48000/ Piece
10.0	US $ 45000/ Piece
20.0	US $ 40000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 30, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 4

Drive Wheel:6�6

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Shacman a`Long

Engine:221kw / 300HP

Gerbox:Fast, 9-Speed

Drivre Axle:13t Str

Cargo Body Size:4800*2300*1500/1800mm

Cargo Body Volume:11cubic-20cubic

Thickness:Side 4mm;Bottom 8mm

Lifting System:with Middle Hydraulic RAM

Hydraulic Cylinders:China Brand

Side Door:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

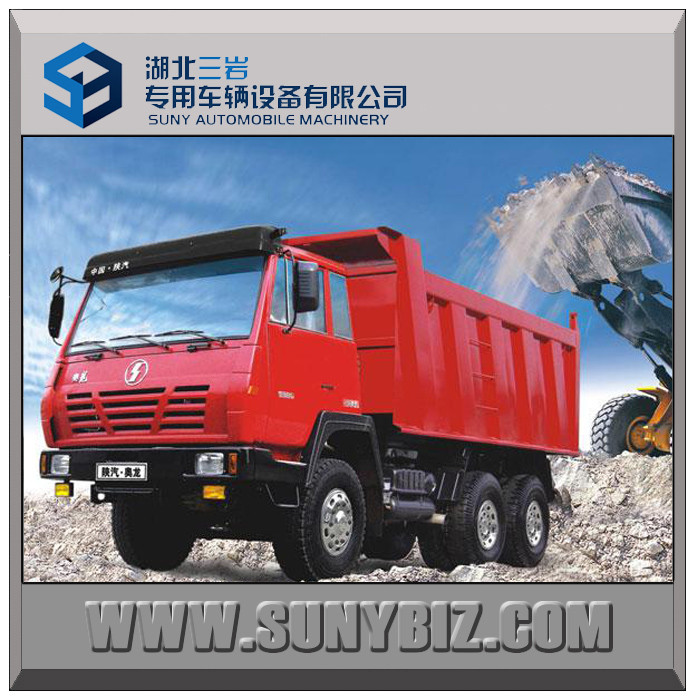

25T 30T 35T 300hp Shacman A`long 6x4 Tipper Truck
Chassis Info:
shacman TRUCK. Load capacity 20T,30T,35T.
Diesel engine, 221kw / 300hp,FAST,9-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:4800*2300*1000*1500/1800mm ,
11CBM Dump Truck,15CBM Dump Truck,20cbm Dump Truck/Tipper truck

Equipped with material of carbon steel Q235,Side 4mm thickness;bottom 8mm thickness,
Equipped with middle hydraulic ram,Single rear door.

Products Technical Specification
Type	Shacman 6*4 Dump Truck
Cab	A`long,one sleeper
Emission Standard	Euro 4
Vehicle Description
Overall dimensions(mm)	750524903450
G.V.W (kg)	25000
Curb weight(vehicle) (kg)	11910
Loading capacity (kg)	20000-35000
Max speed (Km/h)	77
Engine
Engine modle	WP10.300E40
Maximum power	221kw (300hp)
Displacement (lit)	9.726
Engine Manufacturer	Weichai Power Co., Ltd.
Chassis Description
Chassis model	SX3256
Wheel base	2925+1350
F/R track base(mm)	1939/1860
F/R overhang(mm)	1576/1000
Approach/Departure angle(�)	28/32
Drive axle	13T STR
Type of fuel	Diesel
Gear box	FAST,RTD11509C 9-speed
Electric system	24V
Tyres	12.00R20 10+1
Fuel tank capacity	200 L
Dumper body Description
Van dimensions(mm)	480023001500
Van description	Equipped with material of carbon steel, side 4mm thickness;bottom 8mm thickness Equipped withmiddlehydraulic ram, single door.
Optional	Tires; Box thickness, height; side door; Front-lift systems, HYVA brand hydraulic lifting system,etc

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have Shacman water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service

We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .

MOB: 0086 137 0717 3051
