250W High Power Photovoltaic Poly Solar Modules

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.45 - $0.5 / W

Min. Order (pcs)	Unit Price
50.0	US $ 0.50/
500.0	US $ 0.48/
1000.0	US $ 0.45/

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Mar 20, 2015 To Jun 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSP-250

Material:Polycrystalline Silicon

Size:1640*992*40mm

Front Glass:Low Iron High Transmisson,Tempered Glass

Weight:19.5kg

Size of Cell:156*156mm

No. of Cells:6*10

Power:250W

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Eastern Asia, Western Europe

Additional Info.

Trademark:KingSun

Packing:Standard Export Carton Packaging

Standard:KSM250

Origin:Nanjing China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

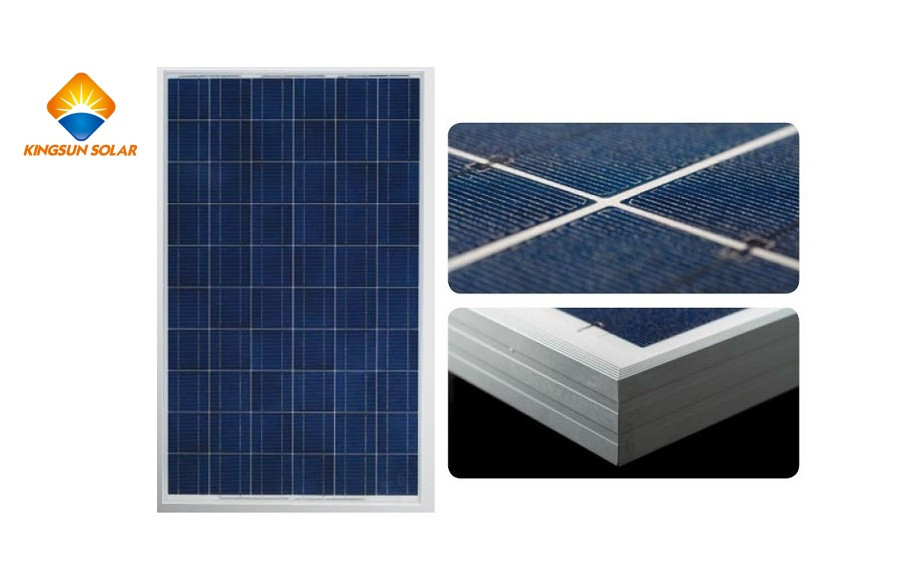

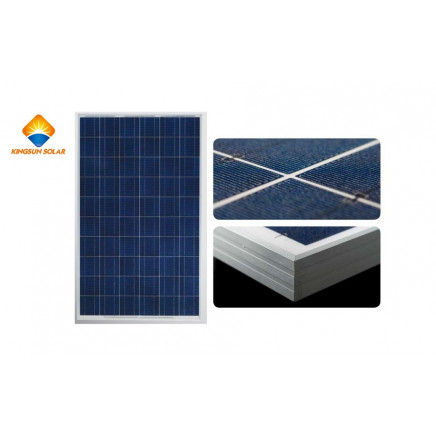

250W Poly-crystalline Silicon Solar Panel

Structure of Solar Panel:
1. Front Material: 3.2MM low-iron toughened glass
2. Back Material: White TPT\TPE
3. Bondable Barrier Film: EVA
4. Frame: Aluminum alloy plated with oxidation film <
5. The warranty of a standard about 25 years/ 80% efficiency on maximum output <
10 years / 90% efficiency on maximum and 5 years warranty on workmanship <
6. Module size can be changed according to the customers' requirement <
7. Standard testing conditions: Am1.5 25� C 1000W/m2 <

EFFICIENCY

Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability

BENEFITS

Manufactured in an ISO 9001: 2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship

KINGSUN'S ADVANTAGES

1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes, solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.

Components & Mechanical Data

Junction Box in proof-water with TUV Certificate
Bypass Diode Rated 15A
Solar Cable & Connector: 4 m� With MC4 connector with TUV Certificate

Solar modules can be designed according to client' s specific requirements.

PARAMETERS:

MECHANICAL PARAMETERS
Solar Cell	60(6�10) poly solar cells 156�156 mm
Front Cover	3.2 mm thick, tempered glass
Back Cover	TPT (Tedlar-TPE-Tedlar)
Encapsulate	EVA (ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0mm2 900mm/MC4 or compatible connectors
Dimensions	1640�992�40mm
Weight	19.5 kg

WORKING CONDITIONS
Maximum System Voltage	DC 1000V (IEC)
Maximum Series Fuse	15A
Operating Temperature	-40�C~+85�C
Storage Temperature	-40�C~+85�C
Max. Wind Load/Max. Snow Load	2400Pa/ 5400Pa
Application Class	Class A
Module Area(m2)	1.63m2
Packing configuration	300Pcs./20ft, container 624Pcs./ 40ft, container

Module	KSP215 Wp- 156P-60	KSP220 Wp- 156P-60	KSP225 Wp- 156P-60	KSP230 Wp- 156P-60	KSP235 Wp- 156P-60	KSP240 Wp- 156P-60	KSP245 Wp- 156P-60	KSP250 Wp- 156P-60	KSP255 Wp- 156P-60	KSP260 Wp- 156P-60
Maximum power at STC (Pmax)	215W	220W	225W	230W	235W	240W	245W	250W	255W	260W
Maximum power voltage (Vmp)	29.3	29.4	29.5	29.6	29.7	29.8	29.9	30.0	30.1	30.2
Maximum power current (Imp)	7.34	7.48	7.63	7.77	7.91	8.05	8.19	8.33	8.47	8.61
Open circuit voltage (Voc)	35.6	35.6	35.8	35.8	35.8	36.0	36.2	36.4	36.8	36.7
Short circuit current (Isc)	8.05	8.19	8.34	8.57	8.70	8.72	8.86	9.03	9.12	9.25
Nominal Operating Cell Temperature	45�2�C
Temperature coefficients of Isc	+0.049%/�C
Temperature coefficients of Voc	-0.340%/�C
Temperature coefficients of Pmax	-0.430%/�C
Standard Test Conditions (STC)	Irradiance 1000W/m2, Module temperature 25�C, Air Mass (AM)=1.5
Power Production Tolerance	�3%
