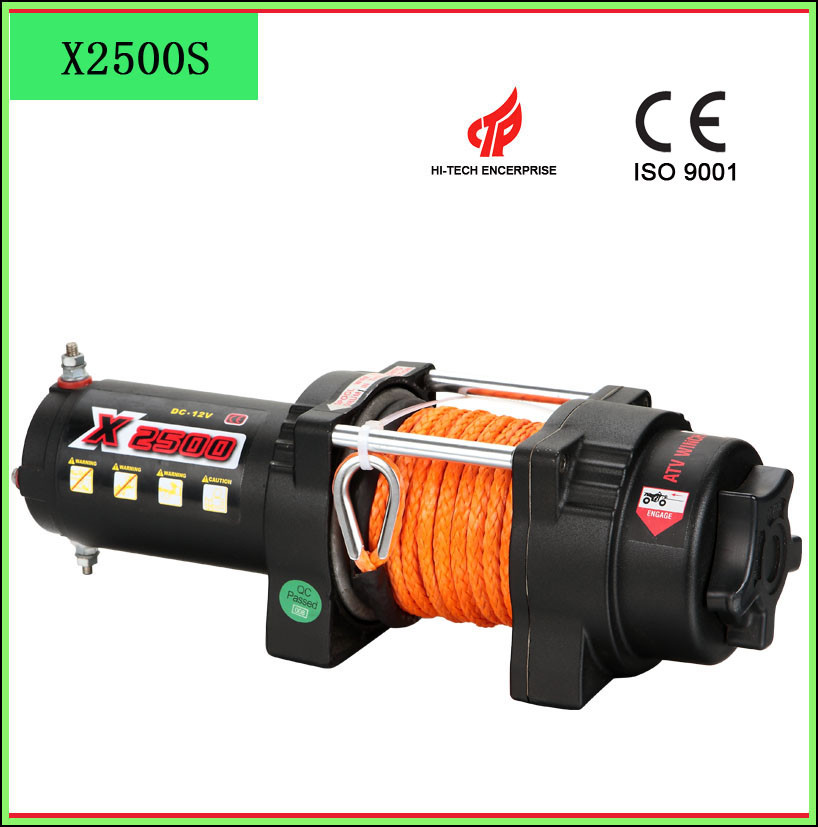

2500lbs Synthetic Rope Winch for ATV

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$50.0 - $100.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 50/ Piece
1000.0	US $ 100/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 15, 2014 To Dec 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X2500S

Type:Electric Winch

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Snow, Mud, Desert

Certification:CE

3000lbs Pulling:Black Texture

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Carton Box, Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000 PCS /Month

Product Description

ATV WINCH
Rated ling pull: 2500lbs ( 1134kgs ) single line.
Motor: Permanent magnetic motor 1.5HP/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 138: 1
Clutch: Sliding Ring Gear
Braking Action: Automatic in the drum
Fairlead: Aluminum Hawse fairlead
Rope: Synthetic rope 5.0mm * 10m
Drum size: 50mm X 76.5mm
Dimensions: 334mm X 114mm X 120mm
Mounting bolt pattern: 124mm X 76mm
N. W.: 165lbs (7.4kgs)
Packing: 440mm X 250mm X 220mm ( 1000 PCS per 20' container )

Line speed and motor current ( first layer )
