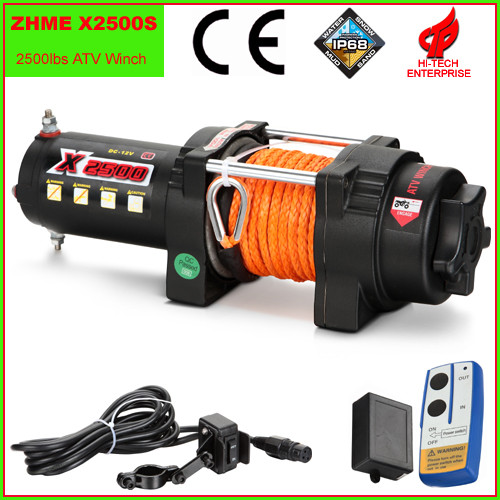

2500lbs Electric Power Resource Anchor ATV Winches with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 50/ Piece

Price:US $50.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 17, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X2500S

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:ATV

Certification:GS, CE

Product Name:Electric ATV Winch

Motor:Winch Motor 1.5HP/1.0kw, 12V DC

Rated Line Pull:2500lbs

Gear Train:3 Stage Planetary Gear 198:1

Rope:Winch Syntheticrope 5.0mm X 12m

Certificate:CE, SGS

Waterproof:IP68

Dimensions:334mm X 114mm X 120mm

N.W.:10kg

MOQ:50 Winches

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Color Box

Standard:CE, SGS, ISO9001: 2008

Origin:Zhejiang, Ningbo

HS Code:84253190

Production Capacity:China

Product Description

2500lbs electric power resource anchor ATV winches with synthetic rope

Advantage:
1. Motor: High performance motor provides fast line speed.
2. Contactor: High efficiency 200 Amp Rated contactor.
3. Gear Box: Waterproof IP68, low noise, steady work.
4. Brake: Independent and automatic, safety and reliability.
5. Waterproof: IP68.

Specifications:

Specifications
Item	X2500
Rated Line Pull	2500lbs(1134kgs) single line
Motor	Permanent magnetic motor 1.5hp/1.0kw, 12V DC
Gear Train	3 stage planetary gear
Gear Ratio	198:1
Braking Action	Automatic in the drum
Fairlead	Aluminum Hawse Fairlead
Rope	Synthetic Rope 5.0mm x 12m
Drum size	50mm x 76.5mm
Dimensions	334mm x 114mm x 120mm
Mounting Bolt Pattern	124mm×76mm
N.W.	10kg
