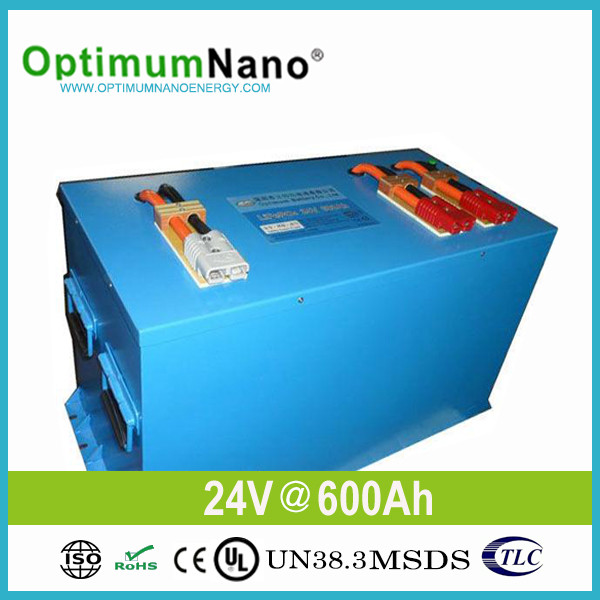

24V 600ah 15kwh LiFePO4 Battery Pack for Solar Home System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 6999/ Piece

Price:US $6999.0 / Piece

Trade Terms: EXW

Payment Terms: T/T

Price Valid Time:From Jul 08, 2015 To Oct 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-024-600

Type:Lithium-Ion Battery Pack

Connection Mode:8s 120p

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:Small

Accessories Type:Battery

Rated Capacity:600ah

Standard Voltage:24V

Usage:Solar System, Energy Storage,UPS

Electrolyte:Lithium Iron Phosphote

Model No.:Ifr 32650-3.2V-5ah

Cycle Life:2000 Times with 80%Dod

Operating Temprature:-20~45centigrade

Weight:196kg

Pack Dimension:Customized

Service:OEM & ODM

Advantage:Strong Power, High Safety, Wide Range Temperature.

Human Resource:More Than 2000 Staffs and 300 Engineers

Application:UPS, Back-up Power, Energy Storage, Solar System

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:Customized Package

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen, Guangdong, China

HS Code:8507802000

Production Capacity:1000000 Pack/Year

Product Description

1. The biggest LiFePO4 battery manufacturer in China with CE, UL, RoHSSGS, TS/16949 and ISO9001-2008 approved and OEM & ODM services offered

Features of 24V 600Ah LiFePO4 battery are as follow:

1. Light weight, about 1/3 the weight of lead-acid battery
2. Small size, about 1/2 size of lead-acid battery, Customized
3. Energy Density (weight ratio): 110 Wh/Kg; Energy Density (weight ratio): 288 Wh/L
4.2000 cycles life with 80%DOD versus 300 for lead acid.
5. Extremely low self discharge rate, ? 3% after 1 month
6. High discharge rate capability, continuous discharge current ? 2.5C, peak discharge current ? 5C
7. Safety: Environmentally friendly, non-toxic, No explosion
8. No memory effect.

In optimum, each cell and pack are produced with the principle "conformity in 6 aspects; Thus, the high stability and reliability can be guaranteed.

Principle of conformity in 6 aspects:

1. Conformity in capacity.
2. Conformity in impedance.
3. Conformity in self-dischargeing.
4. Conformity in voltage(soc).
5. Conformity in discharge stage.
6. Conformity in charge CC ratio.

Product Application:
Energy storage, UPS, Back-up power, Solar system, Power tools, Lawn mower, . Electric vehicle, Sightseeing Bus, Glof cart, E-bike, E-scooter, E-wheelchair, E-motorcycle, miner's lamp and so on.

Model NO	IFR 32650-3.2V-5Ah
Case material	steel case for single cells
Standard capacity( 0. 2 C 5 A )	600Ah
Rated voltage	25.6V
Max.Charge voltage	29.2V
Cut-off voltage	20V
Standard charge current	600 A
Max. continuous discharge current	600 A
Max. discharge current	customized
Weight(Approx,including case)	196Kg
Pack dimension	customized
Impedance(Max, at 1000Hz. )	?12m?
Charge temprature	0 ° C~45 °C
Discharge temprature	-20 ° C~45°C
Storage temprature	-20 ° C~45°C
