24V 10ah Ebike LiFePO4 Battery Pack with Mbs

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $70.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 70/ Piece
100.0	US $ 1/ Piece

Trade Terms: FOB, CIF, DDP, CPT, EXW

Payment Terms: L/C, T/T, Western Union, Cash

Price Valid Time:From Jul 28, 2015 To Oct 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-24-10

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Low Discharge Rate

Size:140*140*100mm

Accessories Type:Battery

Rated Capacity:500MAH?1000MAH

Standard Voltage:24V

Electrolyte:LiFePO4

Components:LiFePO4(Lithium Iron Phosphate)

Rated Voltage:25.6V

Capacity:10ah

Max Charge Volatage:29.2V

Cut-off Voltage:20V

Weight:About 3kg

Certification:CE,UL,RoHS,Tlc,PSE,Ts16949,ISO9001

Warranty:2years

Delivery Detail:15-25days

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:1. PVC Film 2. SLA Case 3. Customized

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen, Guangdong, China

HS Code:8507600090

Production Capacity:10000pks/Day

Product Description

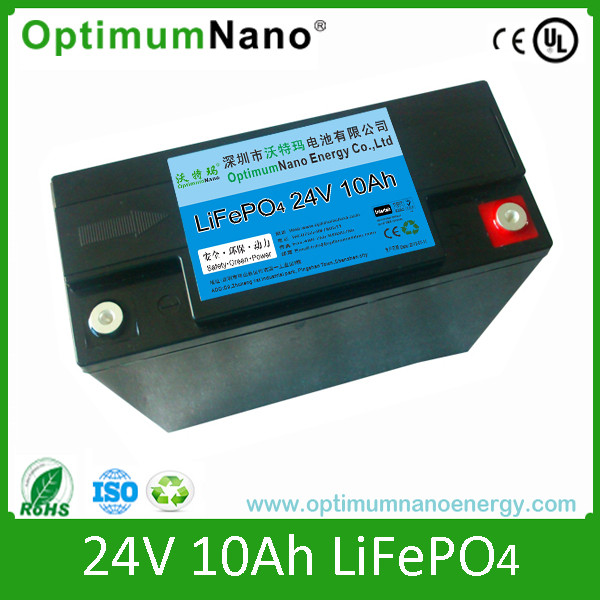

24V 10ah Ebike LiFePO4 Battery Pack with MBS

The biggest LiFePO4 battery manufacturer in China with CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008 approved and OEM & ODM services offered

24V 10ah Ebike Lifepo4 Battery Pack

Product Feature

1. Safety: The safest Li-ion battery, CE UL approved, BMS built inside to protect the battery in the round, none fire, none explosive

2. Environment friendly, Clean and Green energy, no toxic material contained

3. Long life cycle, more than 2000 cycle in 0.5C~1C discharge, 8 times of Lead acid battery

4. No memory effect, highly efficient charge, can be recharged anytime, no reduction of capacity

5. Broad operation temperature: -20~65° C

6. Small in size and light in weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery, 1/2
Weight of lead acid battery

7. Low self-discharge rate: Less than 3% monthly

8. Good performance at high temperature and high temperature resistance

Quality Feature of OPTIMUM Lifepo4 battery pack

1-Principle: Guarantee the cell's performance
The current flows through in Lengthways and then with cross-protection by small fuse

3-Production: Make sure the battery safety
Break Protection, Anti-explosion Protection, PTC Protection

8-Conformity: Make sure the battery stability and long lifetime
Conformity in capacity
Conformity in voltage
Conformity in impedance
Conformity in electricity
Conformity in self-discharging
Conformity in discharge platform
Conformity in CC Charging
Conformity in lifetime

About Optimum Battery Co., Ltd.

1. The approved supplier of Universiade Shenzhen 2011, their 80% lithium battery offered by us.

2. As the professional and leading LiFePO4 battery manufacturer in China, we have a capacity of 1.25 MWh per day.

3. Established in 2001, Optimum Battery Co., Ltd is high-tech corporation with independent intellectual-property and core technologies, which is specialized in LiFePO4 and NI-ZN battery's R & D, production and management. Adjacent to Shenzhen Grand Industrial Park, and with an occupation about 20, 000 square meters, we have more than 1000 employees and over 50 senior engineers.

Certification
Approved CE, UL, ROHS, TLC, PSE, TS16949, ISO9001, BV, SGS

Lifepo4 Battery Compared with SLA Battery
No.	Item	LiFePO4 Battery	SLA Battery	Notes
1	Weight to Power Ratio	120-130Wh/kg	32-37Wh /kg	4:01
2	Dimension to power ratio	210Wh/L	70Wh/L	3:01
3	Cycle Life Time	More 2000 times	300 times	6:01
4	High Rate Charge /Discharge Performance	Higher than 96%	60~70%	1.6:1
5	Charging performance	1Hour	4Hours	1:04
6	Temperature Range & performance	Below20~60degree centigrade LiFePO4 High temperature discharge current is about 105%	Below20~45degree centigrade SLA Battery temperature discharge current is about 80%	1.3:1
7	Monthly Self-discharge Rate	About 3%	More than 10%	1:03
8	Safety	Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions.	Good safety	LiFePO4 Battery is the safest lithium battery in the market
9	Environmental	Environmental friendly	Environment pollution	Without any heavy metals or rare metals
