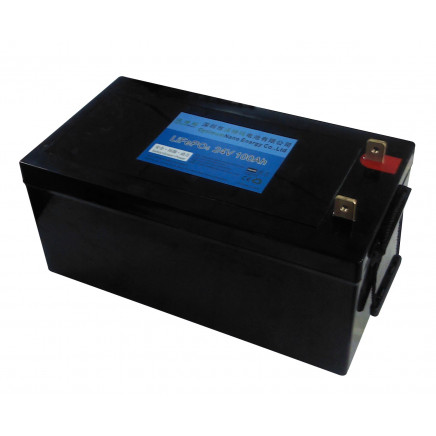

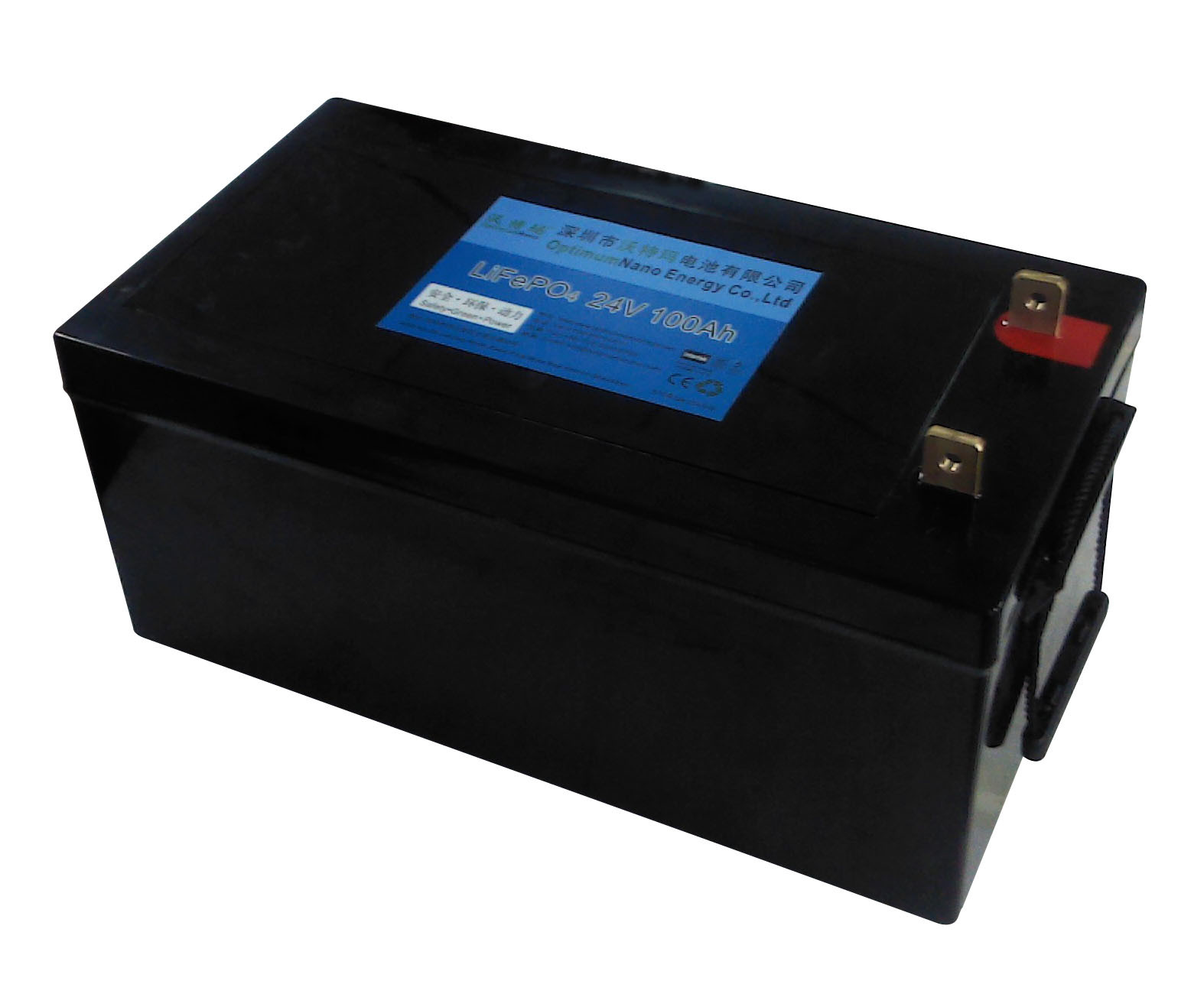

24V 100ah LiFePO4 Solar Energy Storage Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$984.0 - $1259.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1259/ Piece
50.0	US $ 984/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jun 22, 2015 To Aug 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-24-100

Type:Lithium-Ion Batteries

Usage:UPS, Lighting, Boat, Energy Storage Battery

Nominal Voltage:24V

Discharge Rate:High Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Composed Type:8s and 20p

Size:Flexible

Maintenance Type:Free

Application:UPS/Backup/Home Energy Storage

Max. Charge Voltage:29.2V

Cut off Voltage:20V

Rated Voltage:25.6V

Capacity:100ah

Long Life Cycle:More Than 2000times

Self-Discharge Rate:Less Than 3% Monthly

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen, China

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

24V 100ah Lithium Battery for Home Energy Storage

--Quick details--Battery datasheet

Item	Parameter
Rated voltage	24V
Rated capacity	100Ah
Charge current	20A
Continuous discharge current	10A
Peak discharge current	120A
Max	520265220mm
Weight	33kg
Built-in BMS	Yes

--Advantages

1. Safety: The safest Li-ion battery, CE UL approved, none fire, none explosive
2. Environment friendly: Accredited with RoHS, without any hazardous and noxious substances.
3. Long cycle life: Over 2000 cycles with capacity staying at 80% min.
4. Low self-discharge rate: Less than 3% per monthly.
5. Wide operating temperature ( -20~65 degrees Celsius)
6. No memory effect: Always ready for charge and use, with no need to charge after a full discharge.
7. Small in volume and light in weight: The iron-lithium battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery.
8. High energy density and high power output

--Applications

1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: Electric bicycle, electric scooter, electric motor, electric golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs
3. Electric tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

Lifepo4 Battery Compared with SLA Battery
No.	Item	LiFePO4 Battery	SLA Battery	Notes
1	Weight to Power Ratio	120-130Wh/kg	32-37Wh /kg	4:1
2	Dimension to power ratio	210Wh/L	70Wh/L	3:1
3	Cycle Life Time	More 2000 times	300 times	6:1
4	High Rate Charge /Discharge Performance	Higher than 96%	60~70%	1.6:1
5	Charging performance	1Hour	4Hours	1:4
6	Temperature Range & performance	-20-60 degrees Celsius LiFePO4 High temperature discharge current is about 105%,	-20-45 degrees Celsius SLA Battery temperature discharge current is about 80%	1.3:1
7	Monthly Self-discharge Rate	About 3%	More than 10%	1:3
8	Safety	Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions.	Good safety	LiFePO4 Battery is the safest lithium battery in the market
9	Environmental	Environmental friendly	Environment pollution	Without any heavy metals or rare metals
