24 Wheels Detachable Low Bed Semi Trailer (Low Bed Semi Trailer (QDT9402TDP))

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece

Price:US $20000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, DDP, DAP, CPT, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Feb 03, 2015 To Apr 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9402TDP

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Towing Pin Type:"I" Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Model:Qdt9402tdp

Overall Dimension:16064mmx3000mmx1945mm

Effective Loading Surface:7500mm

Curb Weight:17.2t

Loading Capacity:70t

Solid Suspension:50t X3, with ABS

Towing Pin:90#, 50#; Interconvertible

Material:Steel

Scale:Heavy Duty

Certification:ISO/Ts16949, SGS

Export Markets:Global

Additional Info.

Trademark:Qingte, OEM

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:10000/Year

Product Description

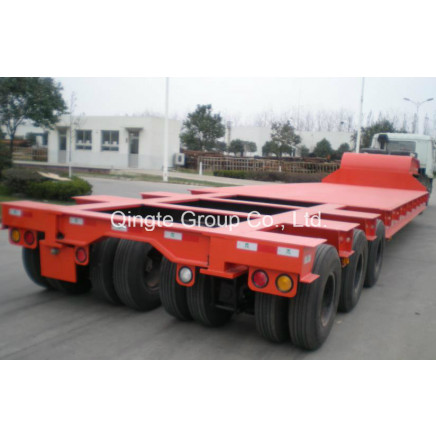

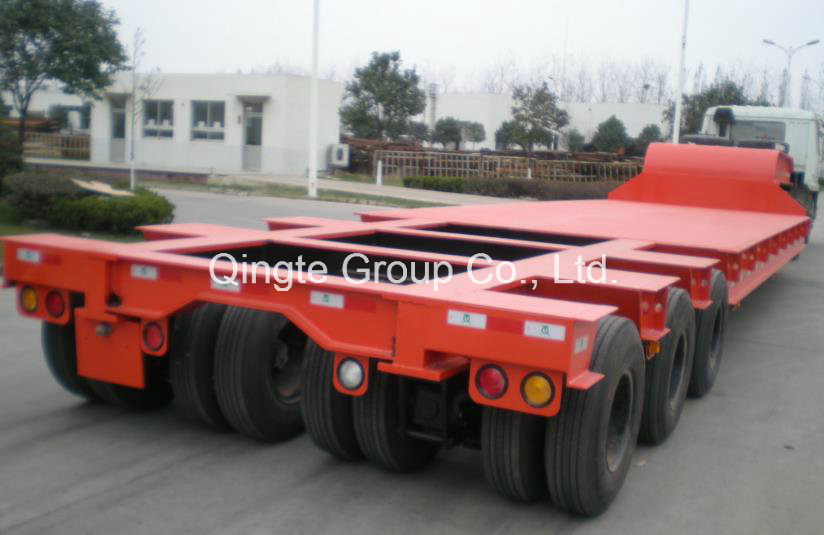

24 wheels Low Flat Bed Semi-trailer with Removable Gooseneck
Model: QDT9402TDP

General information:
Dimensions (L x W x H): 13481x3500x1215(With extending 15mm each side)
Loading Capacity: 150 tons

\

Model:	Detachable low bed semi trailer
Main Specification	Curb Weight	17.4 Tons
	Loading Capacity	70 Tons
	Gross Vehicle Weight	87.4 Tons
	Overall Dimensions	(L x W x H mm) 16064 ×3000×1928
	Effective Area	(L x W x H mm) 7500×2800×845
	Tyres Specification	12.00R20 Double Star 12PCS
	Axles	3 Axles, 16MT, YUEK Brand
Main Specification	Plate Spring	9/9/9
	Main Longitudinal Girder (mm)	Height 450mm
		Top flange 30mm
		Middle flange 16mm
		Middle flange 16mm
		Bottom flange 30mm
	King Pin	3.5'(90#)
	Surface Steel Plate	5 mm Diamond Plates
	Brake	Air Brake
	Wheel Base	1310mm+1310mm
	Power Unit/Engine	YANMAR 16.2KW
