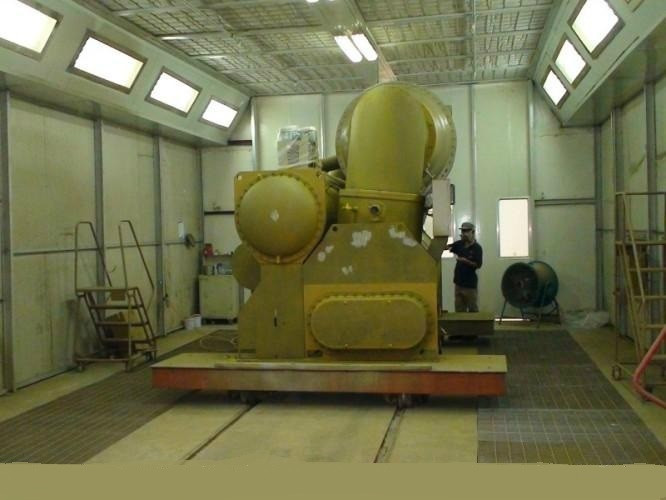

23m Industrial Spray Booths / Woodwork, Furniture Coating Equipment

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 20000/ Set

Price:US $20000.0 / Set

Trade Terms: FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Aug 04, 2015 To Nov 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CPYRW237501

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Captain

Coating:Painting

Airflow Direction:Cross-flow Type

Heating Mode:Used Oil

Paint Mist Treatment:Dry-type

Condition:New

Internal Size:23000*5000*5000mm & 75?4??*16?4??*16?4??

External Size:23144*6896*5600mm & 75?9??*22?6??*18?4??

Wall Board:75mm EPS Panel,

Main Door:1 Unit,4000*4500mm,

Operator's Door:2 Units,650*2000mm

Lighting System:Ceiling:26uints*4; Side:32units*2

Heating System:Italy Riello Rg5s

Intake Fan:6*7.5kw

Exhaust Fan:3*11kw

Export Markets:Global

Additional Info.

Trademark:Captain /OEM

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS

Origin:Jiangsu, China.

Production Capacity:10sets/Month

Product Description

Products Description

This automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.

Equipment Constituents

The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.

Spraying Booth Benefits
1. The device through the action of the wind, water, gas mixture enhanced through the diversion gate, retaining plate, collecting tank, etc., to achieve water and gas separation, thereby overcoming the paint Fog clogging pumps and water systems, causing water system is not working properly shortcomings. As a result of the system without pump water saving devices, saving investment and reducing the footprint.
2. The device is in use, the mist through the water curtain, curtain and roll mixing water and gas passage, multiple classification purification efficiency improves the purification process.
3. Due to the mist and water collecting channel disposed between the diversion gate, both in the collection tank with pressure chamber between the retaining plate also has a diversion gate, to prevent the passage of water vapor mist directly from the collection tank and equalizing chamber is discharged, the purification efficiency improves.
4. Due to the water vapor mixing chamber provided with at least a pan of water board, so that water vapor mist air mixing chamber contains sufficient soluble in water, improve the purification efficiency.
5. Because of the water by adding a mist cleaning agents, paint mist undermine adhesion, cohesion so loose paint mist settling on the bottom for easy cleaning.
6. As in the collection tank with access doors for easy maintenance workers.

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories

Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

Booth Dimension
- Internal Size(L�B�H)	23000�5000�5000mm & 75'4''X16'4''X16'4''
- External Size(L�B�H)	23144�6896�5600mm & 75'9''X22'6''X18'4''
Foundation and Floor
- Grid	2 rows air exhust plenum chamber
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 20700�760mm(L�W), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Profiled bar beams in the roof to strengthen the room body Double construction with insulations EPS , thickness 75mm, width:950mm, tongue and groove interlock structure .
- 4-Folded Entrance Door With Safety Glass Window	1 Unit, 4000�4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With Safety Glass Window	2Units, 650�2000 mm(W�H) ( 2 service door all at the left side )
Lighting System
- Ceiling Lights	26Units, each 4�36 W, with electronic ballasts
- Side Lights	32Units, each 2�30W, with electronic ballasts
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	96M2
Ventilation System
- Intake air system (Fresh Air)	6�7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, total air capacity: 126000m3/h
- Exhaust air system(Exhaust Air)	3�11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity: 108000m3/h
- Damper actuates	Pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 �C
- Heating time	8-15 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )3set
Control Box
- Control system	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start
- Total power	98KW

Additional Information
