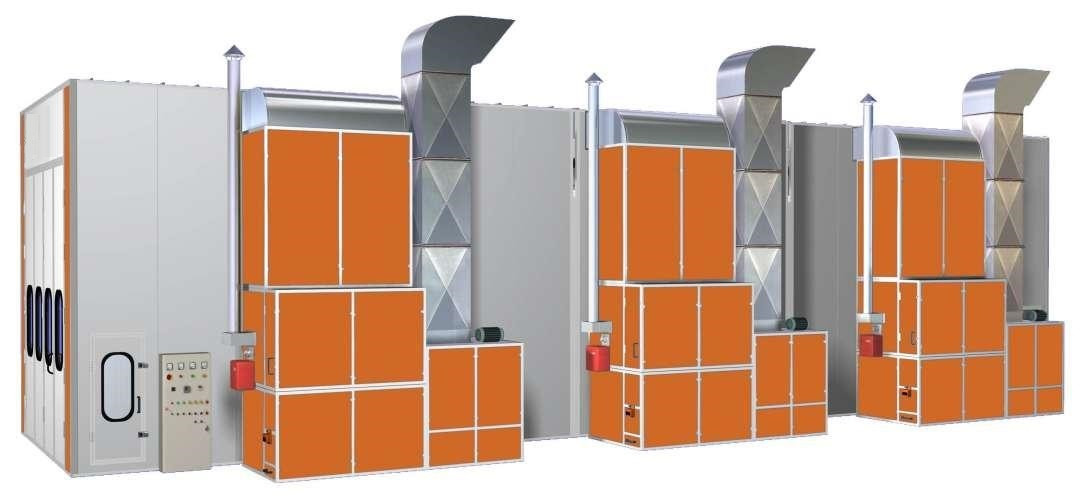

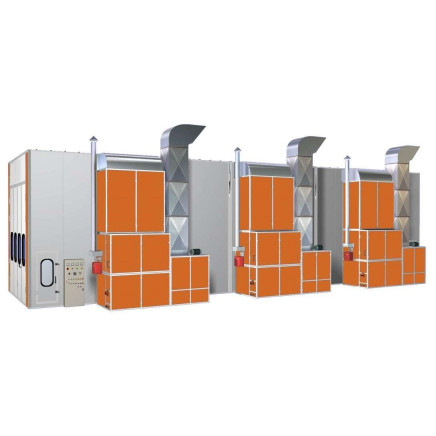

23M Full Grid Industrial Spray Booths With Double Intake Centrifugal Fans

Tag: Water Spray Booth, Spray Bake Paint Booth

23m Full Grid Industrial Spray Booths with Double Intake Centrifugal Fans

Booth Dimension
- Internal Size(L�B�H)	23000�5000�5000mm & 75'4''X16'4''X16'4''
- External Size(L�B�H)	23144�6896�5600mm & 75'9''X22'6''X18'4''
Foundation and Floor
- Grid	2 rows air exhust plenum chamber
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 20700�760mm(L�W), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Profiled bar beams in the roof to strengthen the room body Double construction with insulations EPS , thickness 75mm, width:950mm, tongue and groove interlock structure .
- 4-Folded Entrance Door With Safety Glass Window	1 Unit, 4000�4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With Safety Glass Window	2Units, 650�2000 mm(W�H) ( 2 service door all at the left side )
Lighting System
- Ceiling Lights	26Units, each 4�36 W, with electronic ballasts
- Side Lights	32Units, each 2�30W, with electronic ballasts
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	96M2
Ventilation System
- Intake air system (Fresh Air)	6�7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, total air capacity: 126000m3/h
- Exhaust air system(Exhaust Air)	3�11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity: 108000m3/h
- Damper actuates	Pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 �C
- Heating time	8-15 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )3set
Control Box
- Control system	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start
- Total power	98KW
