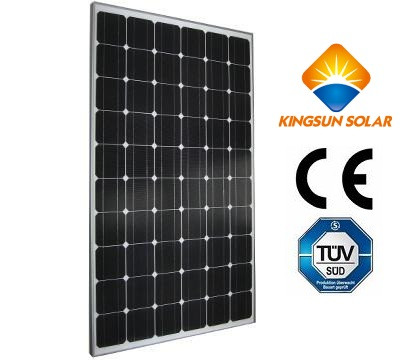

220W Mono-Crystalline Solar Home Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.51 - $0.55 / Watts

Min. Order (Pieces)	Unit Price
10.0	US $ 0.55/
100.0	US $ 0.53/
200.0	US $ 0.52/
1000.0	US $ 0.51/

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From May 19, 2015 To Jun 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSM220

Material:Monocrystalline Silicon

Size of Module:1640*992*40mm

Size of Cell:156*156mm

Quantity of Cell:6*10

Power:220W

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe

Additional Info.

Trademark:Kingsun

Packing:Standard Export Carton Packaging

Standard:KSM220

Origin:Nanjing, China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

220W Mono-crystalline Silicon Solar Home Solar

Structure of Solar Panel:

1. Front Material: 3.2MM low-iron toughened glass
2. Back Material: White TPT\TPE
3. Bondable Barrier Film: EVA
4. Frame: Aluminum alloy plated with oxidation film
5. The warranty of a standard about 25 years/ 80% efficiency on maximum output
10 years / 90% efficiency on maximum and 5 years warranty on workmanship
6. Module size can be changed according to the customers' requirement
7. Standard testing conditions: Am1.5 25ºC 1000W/m2

GUARANTEE
10 years for product defects in materials & workmanship
25years transferrable power output warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output

We provide long-term spot

Reference Pictures

220W Mono-Crystalline Solar Home Panel

MECHANICAL PARAMETERS
Solar Cell	60(6×60) mono solar cells 165×165 mm
Front Cover	3.2 mm thick, tempered glass
Back Cover	TPT (Tedlar-TPE-Tedlar)
Encapsulate	EVA (ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0mm2 900mm/MC4 or compatible connectors
Dimensions	1640×992×40mm
Weight	19.5 kg

WORKING CONDITIONS
Maximum System Voltage	DC 1000V (IEC)
Maximum Series Fuse	10A
Operating Temperature	-40ºC~+85ºC
Storage Temperature	-40ºC~+85ºC
Max. Wind Load/Max. Snow Load	2400Pa/ 5400Pa
Application Class	Class A
Module Area(m2)	1.28m2
Packing configuration	288Pcs./20ft, container 672Pcs./ 40ft, container

Specifications and Parameters
Typical Data at standard test condition (T=25ºC AM=1.5 E=1000W/)
No.	Descriptions and Specifications
1	Peak Power (Pm)	220W
2	Efficiency	17.80%
3	Power Tolerance	±3%
4	Open Circuit Voltatge (VOC)	36.2
5	Short Circuit Current (ISC)	8.15
6	Maximum Power Voltage (Vmp)	29.40
7	Maximum Power Current (Imp)	7.48
8	Size of Module	1640×992×40mm
9	Cell Type	Monocrystalline, Type M
10	Quantity and Dimension of Cell	60(6x10)mono soalr cells,156×156mm
11	Glass type and Thickness	Low iron tempered 3.2mm
12	Weight	19.5kg
