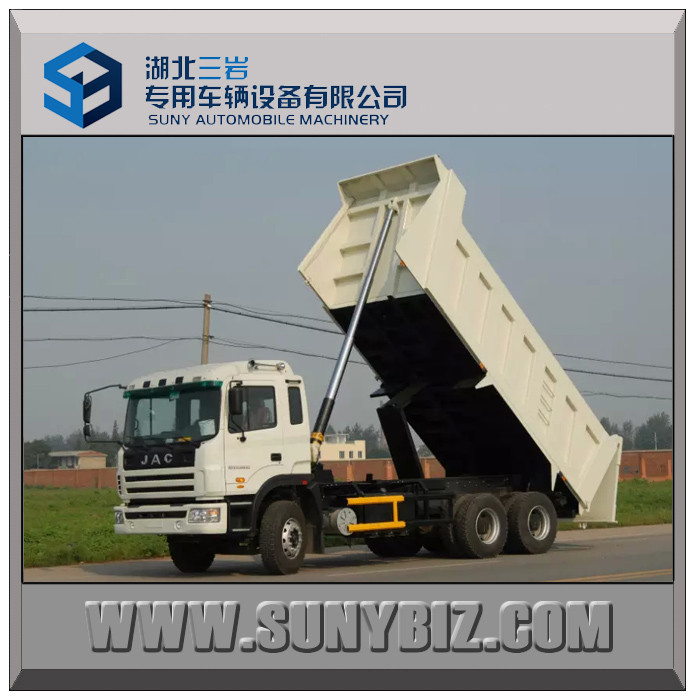

20t 25t 30t 300HP JAC 6X4 Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

20t 25t 30t 300HP JAC 6X4 Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$42000.0 - $48000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 48000/ Piece
20.0	US $ 45000/ Piece
50.0	US $ 42000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 09, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HFC3241

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 4

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Side Dumping Style

Condition:New

Chassis Brand:JAC

Engine:221kw (300HP)

Gerbox:Fast 10 Forward Gears, 1 Reverse Gear

Drivre Axle:Steyr

Cargo Body Size:5200*2300*1200/1500/1800mm

Cargo Body Volume:15 Cubic-22 Cubic

Thickness:Side 6m;Bottom 8mm

Hydraulic Cylinders:Miiddle/Front Lifting System

Optional:Hyva Lifting System

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

15cbm 18cbm 20cbm 22cbm
20tons 25tons 30tons 300hp JAC 6x4 Dump Truck / Tipper truck
JAC Half row with A/C sleeper,fast gearbox 10-speed
china weichai engine 221kw/300hp,Steyr rear axle
dumper drive type;6x4 Optional 6x6 and 8x4
dumper box size:5200*2300*1200/1500/1800mm

Dumper Equipped with material of carbon steel Q235,
Side 6mm thickness;bottom 8mm thickness,

Dumper Equipped with middle/front lift hydraulic ram
(Optional HYVA Brand),Single rear door.

Products Technical Specification
Type	JAC 64 Dump Truck*
Cab	Half row,single sleeper,with A/C
Vehicle Description
Overall dimensions(mm)	783524953500
G.V.W (kg)	25000
Curb weight(vehicle) (kg)	11800
Loading capacity (kg)	20000-30000
Max speed (Km/h)	80
Engine
Engine modle	WP10.300E40 Euro 4
Maximum power	221kw (300hp)
Displacement (lit)	9.726
Engine Manufacturer	Weichai power Co., Ltd.
Chassis Description
Chassis model	HFC3241
Wheel base	3490+1350
F/R track base(mm)	2057/1880
F/R overhang(mm)	1495/1500
Approach/Departure angle(�)	27/26
Spring plate	10/12
Front axle / rear axle	Steyr
Type of fuel	Diesel
Fuel of capacity	350 L
Gear box	FAST , 10-speed with over drive
Electric system	24V
Tyres	11.00R20
Dumper body Description
Van dimensions(mm)	520023001500 /1800
Van description	Equipped with material of carbon steel, side 6mm thickness; bottom 8mm thickness with middle / front lifting system
Optional Equipment	Tires,Dumper body thickness,middle hydraulic ram, side door,etc

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton
20t 25t 30t 300HP JAC 6X4 Dump Truck

We also have JAC water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,KARRY,T-KING,UD,HINO,CAMC,C&Cetc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .
