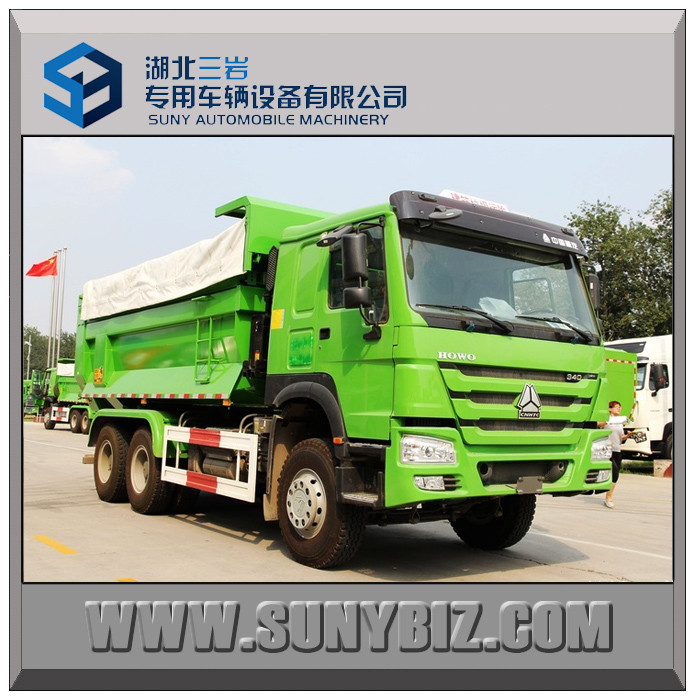

20m3 Environmental Tipper Sinotruk HOWO 6X4 Dump Truck

More Views

20m3 Environmental Tipper Sinotruk HOWO 6X4 Dump Truck

Be the first to review this product

More than 10 available

Availability: In stock

Price:$35000.0 - $43000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 43000/ Piece
10.0	US $ 40000/ Piece
20.0	US $ 35000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 13, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257N3847D1

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 4

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Cnhtc Sinotruk HOWO

Engine:249kw / 340HP

Gerbox:10 Forward Gears, 2 Reverse Gear

Drivre Axle:Hc16

Cargo Body Size:5600/5800*2300*1500/1800mm

Cargo Body Volume:20cubic-24cubic

Thickness:Side 6mm;Bottom 8mm

Lifting System:with Front Hydraulic RAM

Hydraulic Cylinders:Optional Hyva Brand

Side Door:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

20m3 Environmental Tipper Sinotruk howo 6x4 Dump Truck / Tipper truck

Chassis Info:
SINOTRUK HOWO TRUCK. Load capacity 40T,45T,50T.
Diesel engine, 249kw / 340hp,10-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:5600/5800*2300*1500/1800mm ,
20CBM Dump Truck,22CBM Dump Truck,24cbm Dump Truck/Tipper truck

Equipped with material of carbon steel Q235,Side 6mm thickness;bottom 8mm thickness,
Equipped with front hydraulic ram(Optional HYVA Brand),Single rear door.

20m3 Environmental Tipper Sinotruk HOWO 6X4 Dump Truck

Products Technical Specification
Brand-Series		SINOTRUK HOWO 6*4 DUMP TRUCK
Chassis Model		ZZ3257N3847D1
Emission Standard		Euro 4
Fuel type		Diesel
Cabin		HW76 with A/C,one bed
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	854524963450
	Cargo body dimensions	5600/580023001500/1800
	Wheel base	3825+1350
	Front overhang	1500
	Rear overhang	1870
	Min. ground clearance	530
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	12440
	Max payload	30000-50000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	D10.34-40
	Maximum power	249kw / 340hp
	Number of cylinders	6
	Displacement (L)	9.726
	Engine Manufacturer	CNHTC
Transmission	Brand and Model	HW19710
Transmission	Number of gears	10 forward gears, 2 reverse gear.(Manual)
Axle	Rear Load capacity (ton)	HC16
Suspension	Front	10- Leaf spring
Suspension	Rear	12- Leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Dual circuit compressed air brak
Electric device	Rated voltage	24V
Tyres & Quantity		12.00R 20 & 10+1
Cargo body Description
Cargo body dimensions (mm)		5600/580023001500/1800
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 6mm thickness;bottom 8mm thickness
Lifting System		Equipped with Front hydraulic ram, one back door and two side door.
Optional Configuration
HYVA Lifting System,Radial tires,Van thickness,side door,middle hydraulic ram,etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have SINOTRUK water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.

20m3 Environmental Tipper Sinotruk HOWO 6X4 Dump Truck

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
20m3 Environmental Tipper Sinotruk HOWO 6X4 Dump Truck

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .
