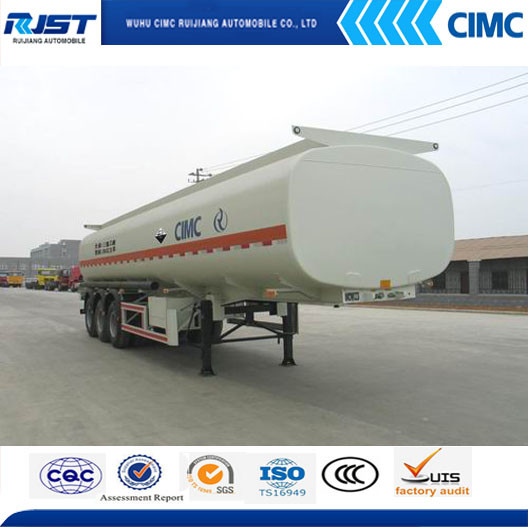

20m3 Chemical Tank Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 15500.0-16600.0/ Piece

Price:$15500.0 - $16600.0 / Piece

Trade Terms: FOB, CIF, CIP, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 23, 2015 To Oct 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9320GHY

Load Capacity:24t

Certification:SGS

Wheel Base:4730+1310

Tread:1840

Grade:8000

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:2

Tire Number:8

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Carbon Steel, Steel

Condition:New

Scale:Heavy Duty

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude

Standard:ISO9001 3C

Origin:China

Production Capacity:10, 000PCS Per Year

Product Description

Overall Dimension:8630*2500*3250mm
Axle Space:4730+1310mm
Tare Weight:8000kg
Pay Load:24000kg
G.V.W.R:32000kg
Tire:11R20
King Pin:2'' Bolted Type
Landing Gear:28t Baohua
Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 20, 000 units per year.

Please contact us to know more.

Dimension(mm)	8630(L)x2500(W)x3250(H)	Payload ( kg )	24000
Axle space(mm)	4730+1310	G.V.W.R.	32000
Tare weight ( kg )	8000
Landing gear	28t FUWA/HOLLAND
Kingpin	2”Bolted type
Brake system	Dual line pneumatic brake system. WABCO brake valve
Abs	No
Brake chamber	Type 30/30 spring brake chamber
Suspension	Spring suspension
Axle	FUWA square axle, 13 ton capacity/set,2pcs
Tire	11.00-20-16PR 8Pcs
Rim	8.0-20 8 Pcs
