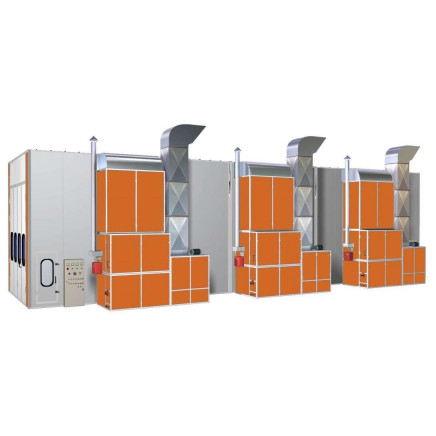

20m Industrial Spray Booths for Painting and Baking

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Money Gram, Western Union

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CPYE207501

Type:Powder Coating Booth

Certification:CE

Substrate:EPS Sandwich Panel

Coating:Painting

Airflow Direction:Cross-flow Type

Heating Mode:Used Oil

Paint Mist Treatment:Dry-type

Condition:New

Internal Size(Lxwxh):20000X5000X5000mm

External Size(Lxwxh):20144X6896X5600mm

Foundation and Floor:Full Grid ,2 Rows Air Exhust Plenum Chamber

Wall:75mm EPS Panel

Front Door:1 Unit, 4000X4500mm(Wxh)

Service Door:2units, 650X2000 Mm(Wxh)

Ceiling Lights:26units, Each 4�36 W

Side Lights:32units, Each 2�30W

Intake Air System:6X5.5kw Centrifugal Fans

Exhaust Air System:3X11kw Centrifugal Fans

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS

Origin:Jiangsu, China.

Production Capacity:30sets/Month

Product Description

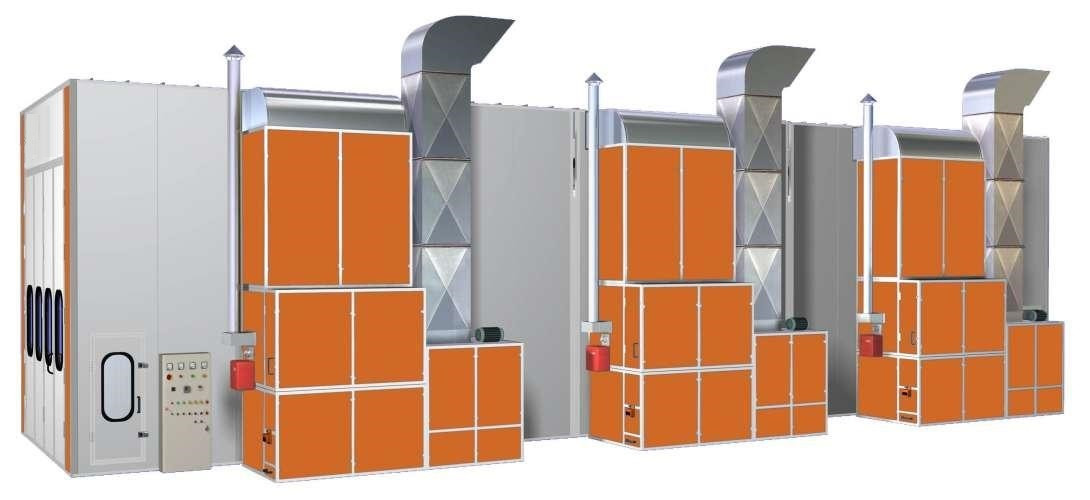

20M Riello RG5S Heating Electric Industrial Spray Booths for Painting and Baking

Tag: Water Spray Booth, Spray Bake Paint Booth

20m Industrial Spray Booths for Painting and Baking

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories

Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

Booth Dimension
- Internal Size(L�W�H)	20000�5000�5000mm & 65'6X16'4''X16'4''
- External Size(L�W�H)	20144�6896�5600mm & 66'1''X22'6''X18'4''
Foundation and Floor
- Grid	full grid ,2 rows air exhust plenum chamber
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 18400�760mm(L�W), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Profiled bar beams in the roof to strengthen the room body Double construction,with insulations EPS , thickness 75mm, width:950mm, tongue and groove interlock structure
- 4-Folded Entrance Door With Safety Glass Window	1 Unit, 4000�4500mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With Safety Glass Window	2Units, 650�2000 mm(W�H) ( 2 service door all at the left side )
Lighting System
- Ceiling Lights	26Units, each 4�36 W, with electronic ballasts
- Side Lights	32Units, each 2�30W, with electronic ballasts
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	84M2
Ventilation System
- Intake air system (Fresh Air)	6�5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity: 93000m3/h
- Exhaust air system(Exhaust Air)	3�11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-630H, total air capacity: 84000m3/h
- Damper actuates	Equip pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 �C
- Heating time	8-12 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )3set
Control Box
- Control system	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start
- Total power	88KW
