20ft ISO Tank Container 20ft Carbon Disulfide Tank Container

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 11200.0-19999.0/ Piece

Price:$11200.0 - $19999.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jan 04, 2015 To Mar 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW9401GXP

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:0.1MPa?p<1.6MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Name:20ft Isotank Container 40ft ISO Tank Container

Tank Material:Carbon Steel(Q235), Mnsteel(Q345, Q370r) Stainless

R&D:CAD&Cae

Mechanical Property Test:Tensile, Strength, Impact Test

Effective Capacity(M3):95% Filled

Heating System:One Set, Hot Pipe Direct Heating, Twin Burner Tube

NDT:Mt Ut Rt 100% Perform for Pressure Vessels

Capacity:20000liters 25000liters 30000liters 35000liters 40

Internal Dimensions(L x W x H)(Mm):6058X2438X2591

Filling Medium:Crude Coal Tar, Motor Oil, Base Oil, Carbon Disulf

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Contaienr

Standard:ISO CCC

Origin:Hubei, China (Mainland)

HS Code:73110090

Production Capacity:1000set/ Month

Product Description

1. Volume: 20000 liters 250000 liters 30000 liters 35000 liters 40000 liters 45000 liters
2. Authentication: 3C, ISO, SGS
3. The manufactory for LPG tank cantainer

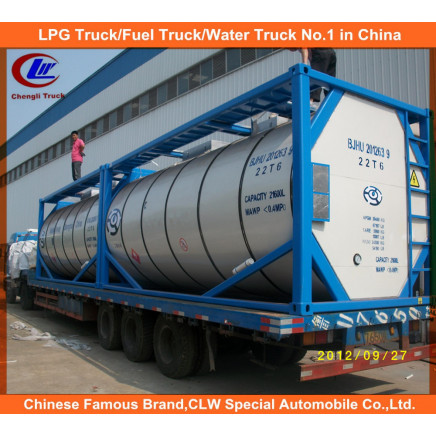

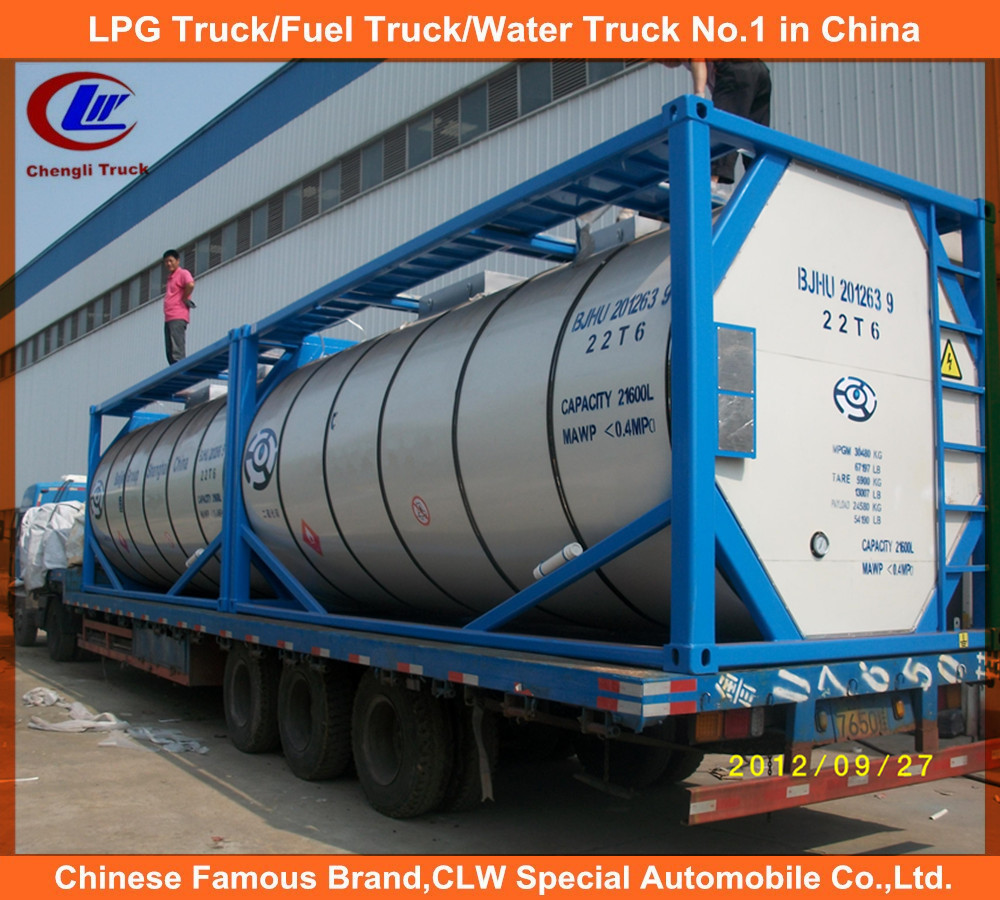

20ft ISO tank container 20ft Carbon disulfide tank container

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

Sales manager: Helen Jiang

Item	Description	Specification	Remarks
1	Shape	Cylinder	20ft
2	The tanker material	Q235B high tensile strength steel
2	The thickness of tanker	5mm	95% filled
3	Outline dimension(mm)	6058x2438x2591
3	Internal Diameter(mm)	2300
4	Tare weight(kg)	5000
5	Insulation layer(mm)	50
6	The temperature down rate of the tank(°C/h)	?2
7	Seal off the head(mm)	6
8	Direct visual temperature meter	1
9	Temperature sensor	1
10	Maintenance manhole	1	Ø500 mm
11	The feeding hole of coal tar	1	Ø250 mm
12	The protect frame of the feeding hole of the coal tar	one,800750200 mm	overflowing cofferdam
13	Breather valve	1
14	Pressure(MPa)	Less than 0.1
15	Coal tar Discharge valve	1	4?
16	Fast coupling	1	4?
17	Temperature	1	-19°C~200°C
18	Ladder	1	W=400mm
19	Heating system	One set, hot pipe direct heating, twin burner tubes, heated by water stream	2 Groups
