2015 Newest Special Swivel Seat for Van Disabled and Elder

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:T/T, Paypal, Western Union

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:S-LIFT-R

Type:Seat

Bumper Position:for Car Van

Material:Steel

Load Capacity:120kg

Lift Height:300 or 395

Turn Angel:0 to 120

Voltage:12V

Own Weight:70kg

Package:Wooden Box

Operate:Handle Switch

Safety:with Emergency Botton

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:ISO

Origin:Jiangsu Changzhou

HS Code:87089999

Production Capacity:500sets/Month

Product Description

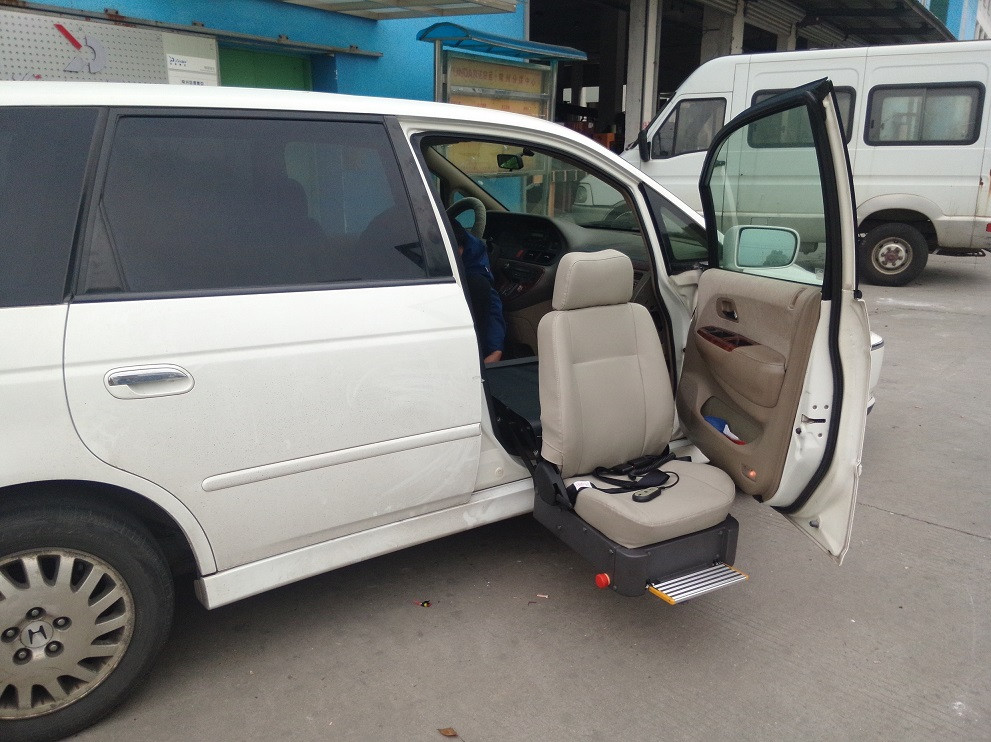

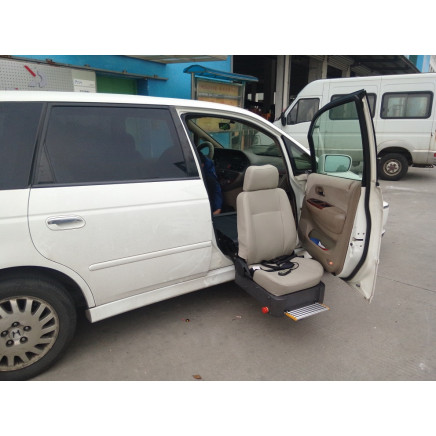

S-LIFT Lifting Seat
1. Introduction
S-LIFT Series turning seat is a kind of equipment to make easy entrance of cars, buses, taxi, ambulance and etc. It can work stable, reliable and safe. Loading capacity can be 120KG.
It is operated by remote control. Turning seat can stop at any position you want by press keys on the remote control.

² Description
Ø This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
Ø Easy operation and reliable function;
Ø It is operated by driver or user;
Ø Working voltage can be 12V or 24V;
Ø Water-proof connectors;
Ø There is warning sound during working;
Ø Working noise is less than 70dB;
Ø Every turning seat has SN which is for track and make after-sales easy;

² Installation
Ø Wholly assembled and easy installation
Ø At the front seat or middle seat of MPV
Ø Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm

² Application
Ø MPV, van, minivan, SUV;
Ø Handicapped car;
Ø Ambulance;

1. Technical Infomation
UNIT: mm

Model	Drive Mode	Overall length when fully extend	Thickness	Dimension	Lifting Height	Volt	Own Weight
S-LIFT	Electric	1600	217	714660217	395	12-24V	70KG
S-LIFT	Electric	1600	217	639660217	300	12-24V	70KG

2. Technical Function
Ø Volt: 12-24V
Ø Generally, max electricity is 12A (during extending and stowing)
Ø Time for turing:5s
Ø Time for moving forward: 14s
Ø Time for lowering down: 30s
Ø Time for lifting: 50s
Ø Time for moving backward: 14s;
Ø Testing weight: 150kg;
Ø Safety grade: IP67;
Ø Safety loading capacity: 120kg;
Ø Noise: less than 70dB;
Ø Rotating angle: 0-120°
Ø Own weight: 68 KG
Ø Operation: remote control or operating switch

3. Safety Function
Ø Surface of seat step is anti-skip;
Ø There is warning sound during seat working;
Ø During seat working, if there is some barrier, press any key, working will stop; press key again, working will start again;
Ø This turning seat has high sensibility;

4. Installation Room Request
Unit: mm

Model	Net door width	Clear width inside car	Size from base to outside of car	Distance between seat front and door sheet	remark
S-LIFT	720	660	Less than 240mm	Over 280 mm

5. Operation
This turning seat is operated by remote control.
Press "DOWN": seat will first move forwarder 270mm, turning 90°; second extend out of car, and then lower down.
Press "UP" to stow seat inside of car.
