2015 New Electric Swivel Seat for Car Install in Middle Door

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, EXW

Payment Terms:T/T

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:S-LIFT-R

Material:Leather

Application:MPV ,Van,Minivan

Condition:New

Load Capacity:120kg

Own Weight:70kg

Rotating Angle:0-120°

Safety Grade:IP67

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:CE

Origin:Jiangsu Changzhou

HS Code:87089999

Production Capacity:100PCS/Month

Product Description

INTRODUCTION

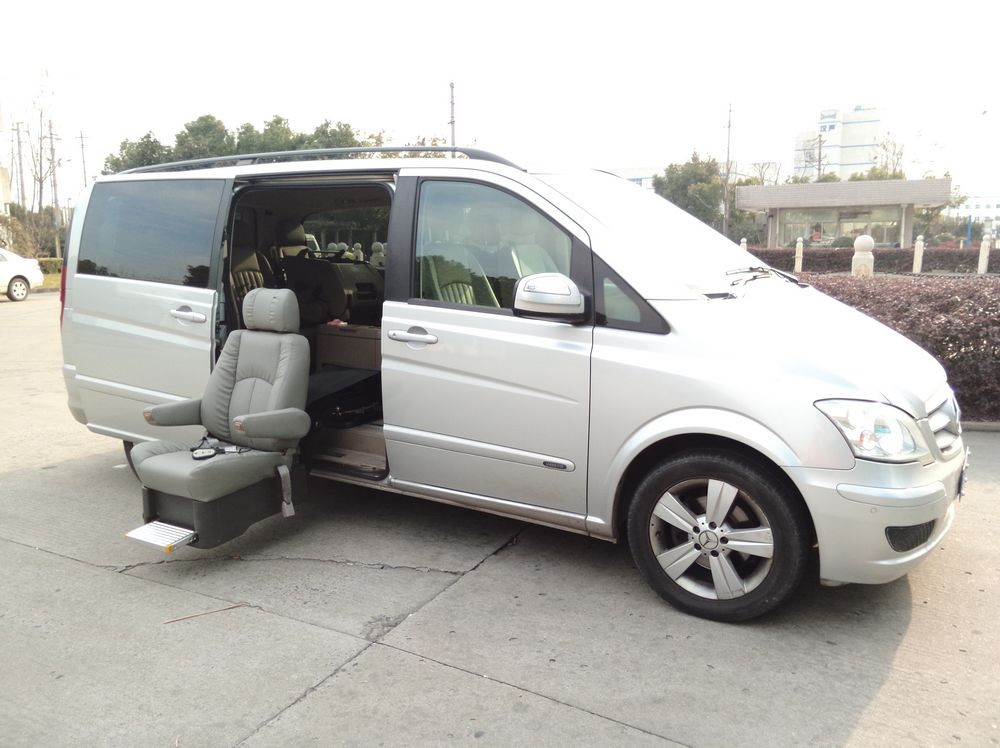

This lifting seat is installed inside of car, which is especially designed for the disabled and the old. It is installed at the copilot.
The user can use control switch to make the seat turn out of/into car, and also use this switch to lift and lower down the seat.
The max loading capacity can be 120 kg, which is reliable.

Description
This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
Easy operation and reliable function;
It is operated by driver or user;
Working voltage can be 12V or 24V;
Water-proof connectors;
There is warning sound during working;
Working noise is less than 70dB;
Every turning seat has SN which is for track and make after-sales easy;

Installation
Wholly assembled and easy installation
At the front seat or middle seat of MPV
Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm

Application
Ø MPV, van, minivan, SUV; Ø Handicapped car; Ø Ambulance;

Technical Information

Model	Drive Mode	Length(extended)	Thickness(without seat)	LiftingHeight	Volt	LoadingCapacity	OwnWeight
S-LIFT	Electric	1600mm	217mm	395mm or 300mm	12V or 24V	120KG	70KG

Technical Functions
Volt: 12-24V
Generally, max electricity is 12A (during extending and stowing)
Time for turing:5s
Time for moving forward: 14s
Time for lowering down: 30s
Time for lifting: 50s
Time for moving backward: 14s;
Testing weight: 150kg;
Safety grade: IP67;
Safety loading capacity: 100kg;
Noise: less than 70dB;
Rotating angle: 0-120°
Own weight: 70 KG
Operation: remote control or operating switch
