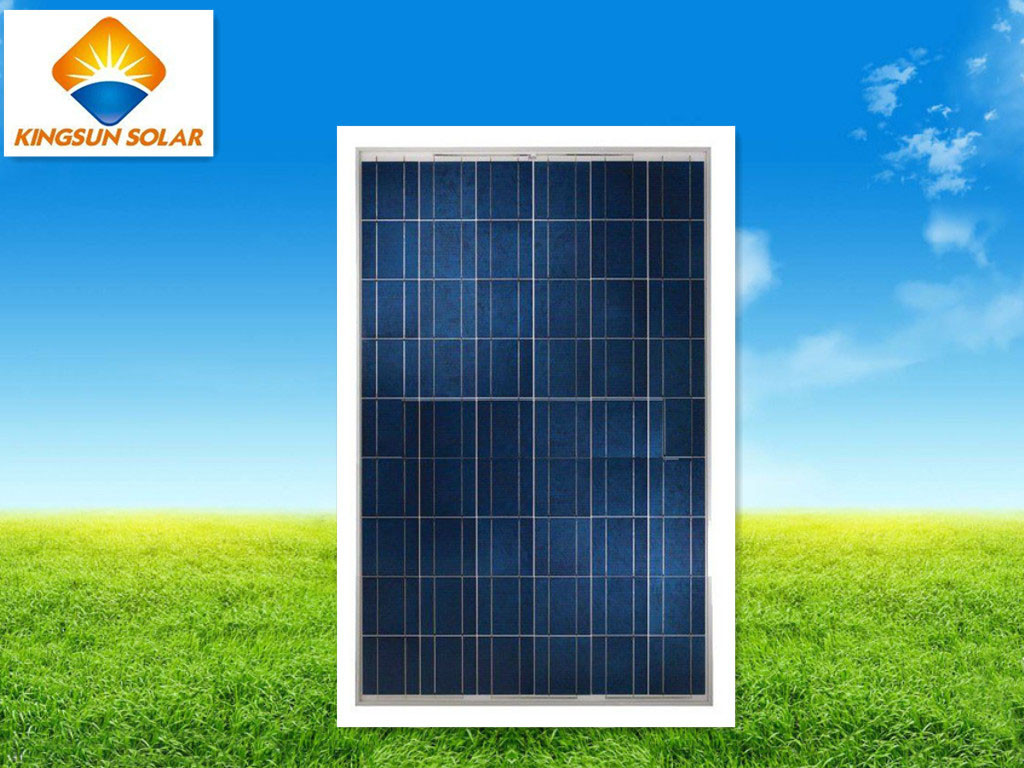

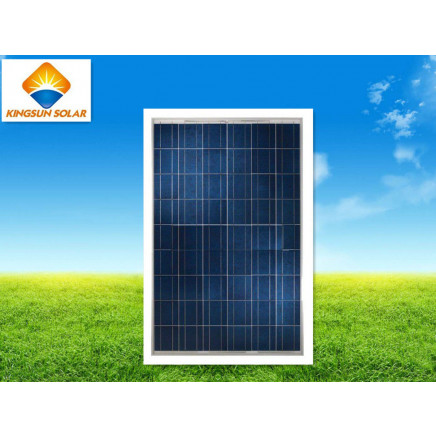

2015 High Efficiency Polycrystalline Solar Panel Module 200W

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.4 - $0.42 / watt

Min. Order (Pieces)	Unit Price
1.0	US $ 0.42/
100.0	US $ 0.4/

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 12, 2015 To Sep 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSP200W-54

Material:Polycrystalline Silicon

Front Cover:3.2 Mm Thick, Tempered Glass

Back Cover:Tpt

Encapsulate:EVA

Frame:Double-Layer Anodized Aluminium Alloy

Junction Box:IP65 Rated

Weight:17.5 Kg

Export Markets:Global

Additional Info.

Trademark:KingSun

Packing:288PCS./20ft, Container; 672PCS./ 40ft, Container

Standard:CE

HS Code:8541402000

Production Capacity:10 Million Per Month

Product Description

Product Description

EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability

BENEFITS
Manufactured in an ISO 9001:2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship

We provide long-term spot

Why choosing KINGSUN
1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes,solar panels  are as efficient as other competitors, but far cheaper-without skimping on quality.

Components & Mechanical Data

Junction Box in proof-water with TUV Certificate
Bypass Diode Rated 15A
Solar Cable & Connector: 4m� MC 4connector with TUV Certificate
1.Toughed Glass: The glass is super white cloth grain of toughened glass , the thickness of 3.2mm ,  the solar cell spectral response range of wavelengths (320
1100 nm), light transmittance over 91% , Ultraviolet light radiation , light transmittance is not falling . Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.
2. EVA:  0. 5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass, TPT agent. With high light transmittance and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90% ; Crosslinking degree is more than 65-85% ; Peel strength (N/cm), glass/film is more than 30 ; TPT/film is more than 15 ; Temperature resistance , high temperature 85� C ,  low temperature - 40� C .,
3. TPT Back-Sheet: the back of the solar panel, ageing resistance , corrosion resistance , resistance to ultraviolet radiation, airtight, etc. Basic requirements.
4. Frame: aluminum alloy frame with high intensit , mechanical shock resistance ability

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25� C cell temperature
Operating Temperature: -40 ~ +85� C
Storage Temperature: -40 ~ +85�

Guarantee
10 years for product defects in materials & workmanship
25years transferrable power output warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output

PARAMETERS:

MECHANICAL PARAMETERS
Solar Cell	54 (6�9) poly solar cells 156�156 mm
Front Cover	3.2 mm thick, tempered glass
Back Cover	TPT (Tedlar-TPE-Tedlar)
Encapsulate	EVA (ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0mm2 900mm/MC4 or compatible connectors
Dimensions	1480�992�40mm
Weight	17.5 kg

WORKING CONDITIONS
Maximum System Voltage	DC 1000V (IEC)
Maximum Series Fuse	15A
Operating Temperature	-40�C~+85�C
Storage Temperature	-40�C~+85�C
Max. Wind Load/Max. Snow Load	2400Pa/ 5400Pa
Application Class	Class A
Module Area(m2)	1.47m2
Packing configuration	288Pcs./20ft, container 672Pcs./ 40ft, container

ELECTRONIC PARAMETERS
Module	KSP195Wp- 156P-54	KSP200Wp- 156P-54	KSP205Wp- 156P-54	KSP210Wp- 156P-54	KSP215Wp- 156P-54	KSP220Wp- 156P-54	KSP225Wp- 156P-54	KSP230Wp- 156P-54
Maximum power at STC (Pmax)	195W	200W	205W	210W	215W	220W	225W	230W
Maximum power voltage (Vmp)	26.5	26.6	26.7	26.8	26.9	27.0	27.1	27.1
Maximum power current (Imp)	7.36	7.52	7.68	7.84	7.99	8.15	8.30	8.49
Open circuit voltage (Voc)	31.8	32.0	32.0	32.5	32.6	32.8	32.8	33.0
Short circuit current (Isc)	8.18	8.33	8.54	8.62	8.68	8.82	9.03	9.17
Nominal Operating Cell Temperature	45�2�C
Temperature coefficients of Isc	+0.049%/�C
Temperature coefficients of Voc	-0.340%/�C
Temperature coefficients of Pmax	-0.430%/�C
Standard Test Conditions (STC)	Irradiance 1000W/m2, Module temperature 25�C, Air Mass (AM)=1.5
Power Production Tolerance	�3%
