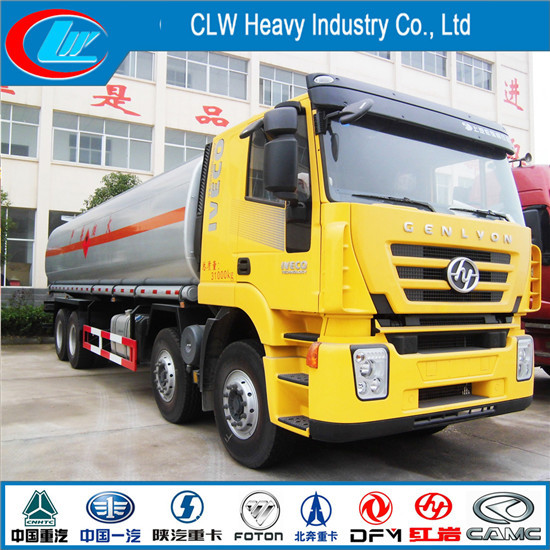

2015 Heavy Capacity New Design 350HP Iveco Fuel Fitter Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 55000.0-59500.0/ Piece

Price:$55000.0 - $59500.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 10, 2015 To Aug 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Tank Volume:?30000L

Drive Wheel:8�4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Tubeless

Condition:New

Description:2015 Heavy Capacity New Design 350HP Iveco 8X4 Fu

Engine:266HP/290HP/336HP/350HP/371HP

Tire:11r22.5/12r22.5/11.00r20/12.00r20

Volume of Tank:25000L, 30000L, 35, 000L, 40

Cabin:with One Sleeper or Without Sleeper

Driving Axle:4X2/6X4/8X4

Other Key Parts:Discharged Pump/ Discharged Valve/API Manhole

Pto:with 50# or 60# Pto

No. of Compartment:No. of 1/2/3/4/5/6 Compartments

Export Markets:Global

Additional Info.

Trademark:CLW BRAND

Packing:RO-RO Bulk Naked Container

Standard:ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC

Origin:Hubei Suizhou

HS Code:8704230090

Production Capacity:500unit/Month

Product Description

BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Specifications

Hongyan heavy duty oil tank truck, fuel tank truck:
1). Euro2, Euro3, Euro4, Euro5;
2). 20cbm, 25cbm, 28cbm, 30cbm; 35cbm, 40cbm.
3). B&V certificate

Fuel tanker series
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally

Our company:

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Fuel tanker:
1. Applied carbon steel sheet Q235-A; Or Stainless steel; Or Aluminium alloy.
2. Apply the famous pump.
3. The main parts implements automatic welding.
4. Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5. Fire extinguisher replaced on the back of the truck for the emergency.
6. Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.

Below specification is just for your reference. More information of our Fuel Tank Truck, please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

Fuel Tank Truck Model		CLW5316
Chassis	Model	CQ1315HTG466V
	Standard	Euro III
	Overall dimensions	1139025003738 mm
	G.V.W	31000 kg
	Net weight	11605 kg
	Rated load	19865 kg
	Drive type	8X4
	Suspension F/R	1435/2780 mm
	Wheel base	1800+4200+1400 mm
	Track F/R Base	2006/2006/1850/1850 mm
	Number of axles	4
	Axle-load	6500/6500/18000 kg (2 rear drive axle )
	Approach/Departure Angle	19/10 �
	Number of Spring leafs	8/8/12
	Tire ( No. & specification)	Standard equipped 11.00-20 18PR ranhou tyre , 12pcs+1pc (opting radial tire or nylon tire)
	Max speed (Km/h)	95 km/h
	Brake system	Pneumatic braking
	Steering	Power Steering
	Transmission	12JS180T, Mechanical 12 forward + 2 reverse
Engine	Engine model	SC10E350Q4 (EURO 4 emission) optional EURO 3 other engine
	Type of fuel	diesel
	Power	258 kw ( 350 hp )
	Exhaust	10420 ml
Fuel Tank	Storage medium	Oil
	Tank capacity	30CBM
	Tank shape	Oval shape.
	Fuel tanker size	900025001800mm (30 m3 = 30000 L)
	Tank material	Standard equipped the carbon steel as the tank material , and the carbon steel can be replaced by stainless steel or aluminum alloy or colored steel.
	Standard equipment	Single gravity flowing wareroom, no pump, two aluminum alloy openings , ware rooms, liquid level indicator, pump, watch, spool, measurement gun, manhole, AIP valve and oil-gas recovery system and so on are optional

Fuel Tank Truck Model		CLW5316
Chassis	Model	CQ1315HTG466V
	Standard	Euro III
	Overall dimensions	1139025003738 mm
	G.V.W	31000 kg
	Net weight	11605 kg
	Rated load	19865 kg
	Drive type	8X4
	Suspension F/R	1435/2780 mm
	Wheel base	1800+4200+1400 mm
	Track F/R Base	2006/2006/1850/1850 mm
	Number of axles	4
	Axle-load	6500/6500/18000 kg (2 rear drive axle )
	Approach/Departure Angle	19/10 �
	Number of Spring leafs	8/8/12
	Tire ( No. & specification)	Standard equipped 11.00-20 18PR ranhou tyre , 12pcs+1pc (opting radial tire or nylon tire)
	Max speed (Km/h)	95 km/h
	Brake system	Pneumatic braking
	Steering	Power Steering
	Transmission	12JS180T, Mechanical 12 forward + 2 reverse
Engine	Engine model	SC10E350Q4 (EURO 4 emission) optional EURO 3 other engine
	Type of fuel	diesel
	Power	258 kw ( 350 hp )
	Exhaust	10420 ml
Fuel Tank	Storage medium	Oil
	Tank capacity	30CBM
	Tank shape	Oval shape.
	Fuel tanker size	900025001800mm (30 m3 = 30000 L)
	Tank material	Standard equipped the carbon steel as the tank material , and the carbon steel can be replaced by stainless steel or aluminum alloy or colored steel.
	Standard equipment	Single gravity flowing wareroom, no pump, two aluminum alloy openings , ware rooms, liquid level indicator, pump, watch, spool, measurement gun, manhole, AIP valve and oil-gas recovery system and so on are optional

Exporting

Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.

1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana

We are confident and committed to providing our customers with the best qualityand service all the time

If you are interested in our trucks, pls contact me, I will send our best quotation to you!

Contact information

Sale Manager: Kitty Zhen

Tel/Fax : 00862783796298

Cell:0086-13872880590/13349909442

Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your precious suggestion for us!
