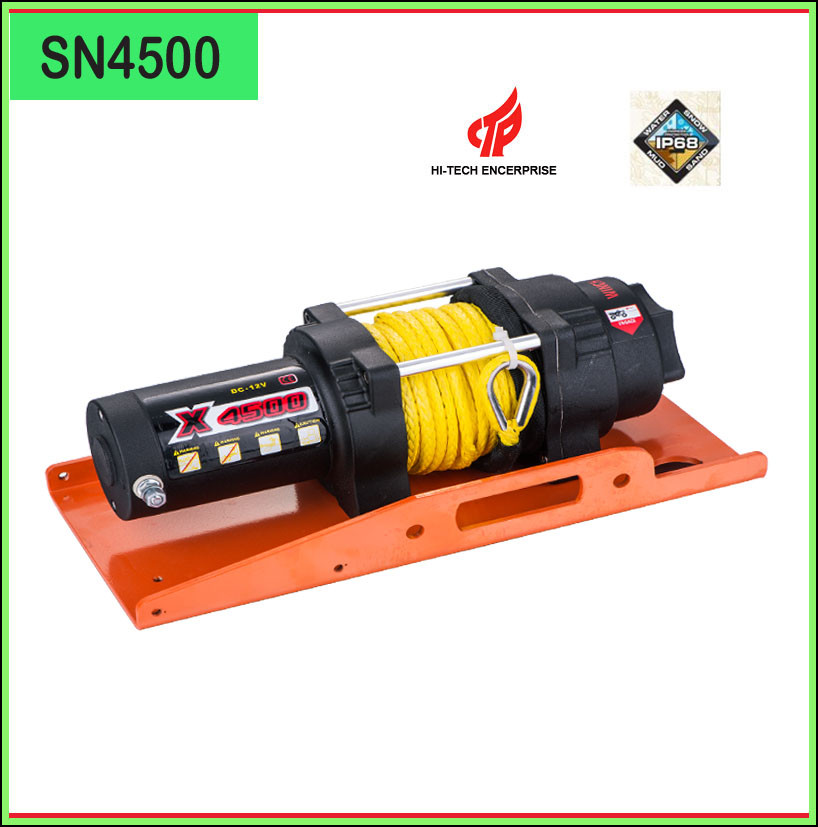

2014 Zhme Hot Sale 4500lb Electric Winch with Dyneema Rope

2014 Zhme Hot Sale 4500lb Electric Winch with Dyneema Rope

More Views

2014 Zhme Hot Sale 4500lb Electric Winch with Dyneema Rope

Be the first to review this product

More than 10 available

Availability: In stock

Price:
Min. order:100 Pieces
Trade Terms:FOB
Payment Terms:L/C, T/T
Trademark:ZHME
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
2014 Zhme Hot Sale 4500lb Electric Winch with Dyneema Rope

Also available at

Login or Signup to View Links.
Description

Details

Basic Info.

Model NO.:SN4500
Type:Electric Winch
Pull Direction:Forward
Electric Winch Model:ATV
Brand:Zhme
Applicable Environment:Beach
Certification:CE
4500lbs Pulling:Black Texture
Export Markets:Global

Additional Info.

Trademark:ZHME
Packing:Carton Box, Pallets
Standard:CE
Origin:Ningbo, China
HS Code:84253190
Production Capacity:6000 PCS /Month

Product Description

2014 ZHME hot sale 4500lb Electric winch
1.Ring Gear: All metal construction enhances strength and long life
2.Clutch: Large and easy to use clutch control
3. Planetary: Three stage all metal system for maximum strength, efficiency and reliability

Rated ling pull: 4500lbs ( 2041kgs ) single line.
Motor: permanent magnetic motor 1.8hp/1.3kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198:1
Clutch : Sliding Ring Gear
Braking Action: Automatic in the drum
Fairlead: Aluminum Hawse fairlead
Rope: Synthetic rope 6.3mm * 15m
Drum size: 50mm X 119.5mm
Dimensions: 391mm X 114mm X 120mm
Mounting bolt pattern: 124mm X 76mm
N.W.: 165lbs (7.4kgs)
Packing: 480mm X 250mm X  220mm ( 800 pcs per 20' container )

Accessories:
2014 Zhme Hot Sale 4500lb Electric Winch with Dyneema Rope


Line speed and motor current(first layer)
Line pull lbs 0 1000 2000 3000 4500
kgs 0 454 907 1360 2041
Line speed FPM 16 10.5 9.2 7.2 3.9
MPM 4.9 3.2 2.8 2.2 1.2
Motor current Amps 15 70 105 135 210








Line speed and cablecapacity
Layer of cable   1 2 3 4
Rated line pull per layer lbs 4500 3625 3010 2596
kgs 2041 1648 1368 1180
Cable capacity per layer Ft. 12.5 26.9 43.3 49
M 3.8 8.2 13.2 15
