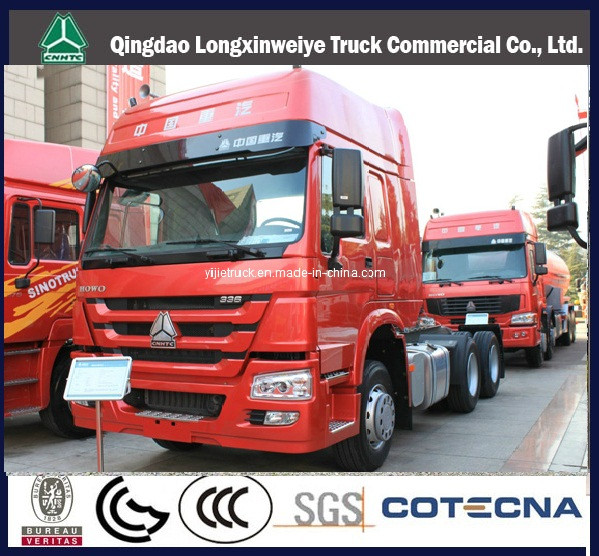

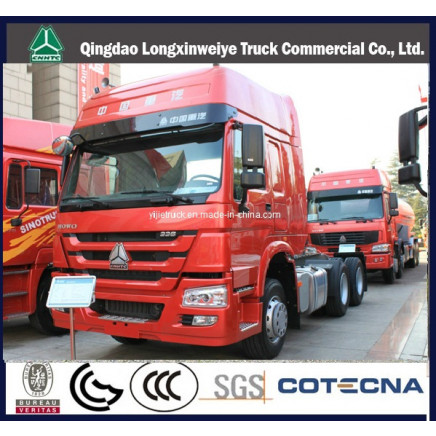

2014 New Sinotruk HOWO 371HP 6X4 Tractor Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 38000.0-38980.0/

Price:$38000.0 - $38980.0 / Unit

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Nov 04, 2014 To Jan 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257S3241W

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Loading Capacity:40ton

Kingpin:90#

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK--HOWO

Packing:Nude Packing

Origin:Shangdong, China

Production Capacity:60000 Units/Year

Product Description

2014 New Sinotruk HOWO 371HP 6X4 Tractor Truck

1. Hydraulic cylinder howo tractor truck
2. Loading 25ton-60ton capacity
3. Radial tire or Tubeless tire
4. Widely used to carry coal, mine, iron powder, steel slag, lime ash, stone, sand, wood etc
5. Suitable for good or bad road condition
6. Low fuel consumption, low pollution, high safety

HOWO 6*4 Tractor Truck with Stronger Materials and Cheap Price
Engine:
Make: SINOTRUK
Diesel: 4-stroke direct injection diesel engine
Engine model: Euro II, Euro III, Euro IV emission standard; 6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 336 HP, 375HP, 380HP, 420HP

Clutch: Single-plate dry coil-spring clutch, diameter 420mm

Transmission: Model: HW18709, synchromesh, 9 forward & 1 reverse; Option: 5S-150GP

Front Axle: Steering with double T-cross section beam

Rear Axles: Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles, Ratio: 5.73

Steering: ZF power steering, model ZF8098, hydraulic steering with power assistance. Ratio: 20.2-26.2

Braking System: Service brake: Dual circuit compressed air brake; Parking brake(emergency brake): Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake; Option: ABS

Wheels & Types: Rims: 8.5-20, 10 hole-steel; Types: 12.00-20; Option: 12.00R20, 11.00-20, 11.00R20, 12R22.5

Cab: Standard cab, all-steel forward control, 55° Hydraulically tiltable to the front, a-arm windscreen with casted-in radio aerial, hydraulically damped adjustable drivers seat and rigid adjustable co-drivers seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio and/cassette recorder, safety belts, adjustable steering wheel, air horn, air conditioner, with 4-point support fully floating suspension + shock absorbers

Electrical System: Operating voltage24V, negative grounded; Starter: 24V, 7.5kw; Alternator: 3-phase, 28V, 1500W; Batteries: 2*12V, 165Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light; Option: 180Ah Batteries.

We are the first level agency for SINOTRUK whole truck series, we can supply HOWO tractor trucks, HOWO dump trucks, HOWO concrete mixer trucks and special trucks, we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.

We also supply HOWO A7 series 4X2, 6X4 tractors and 6X4, 8X4 dump trucks etc. Which developed on the base of HOWO series, with higher equipment and performance.

2014 New Sinotruk HOWO 371hp 6X4 Tractor Truck
	MODEL	HOWO 6x4 TRACTOR TRUCK
Cab	Driving type	Left Hand Drive(RHD is optional)
Cab	Cab type	HW76 flat roof cab with one sleeper bed,with A/C
Engine	Engine Model	WEICHAI WD615.47,371hp
	Type	6-cylinder in-line with water cooling, supercharging & inter cooling
	Displacement	9.726L
	Engine output	371hp/2200 rpm
	Max. torque	1350 NM /1300-1600rpm
Frame and equipments	Transmission (gear box)	HW15710,10 speed transmission
	Clutch	D430 Diaphragm type
	Steering	ZF8098
	Front axle	HF7 drum type, 7tons
	Rear axle	HC16 Double reduction Ratio=3.73
	Fuel tank	400L
	Tires	12.00R20, 10+1spare
Weights in kg	Kerb. mass	9180kg
	Total mass	25000kg
	Max.towed capacity	40tons to 60tons
Performance	Max. speed (km/h)	102
	Max. gradeability(%)	26
	Approach/departure angle	16/70 degree
Dimension in mm	Overall dimension(mm)	6800×2496×2958
	Wheel base (mm)	3200+1400
	Front/rear overhang (mm)	1500/725
	Front /rear wheel track(mm)	2022/1850
	Saddle joint surface height(empty/full)	1360/1326
	Front /rear turning circle(mm)	2790/2230
	Minimum ground clearance(mm)	267
	Saddle size	2''( 3.5'' is optional)
