20000L Sinotruk HOWO 6X4 Oil Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

20000L Sinotruk HOWO 6X4 Oil Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$38000.0 - $43000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 43000/ Piece
10.0	US $ 40000/ Piece
20.0	US $ 38000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 26, 2015 To Jun 30, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ1257N

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 2

Tank Volume:15001-30000L

Drive Wheel:6�4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Bias

Condition:New

Chassis Brand:Cnhtc Sinotruk HOWO

Cabin:Hw76, with A/C, Sleeper

Engien:273kw / 371HP

Transmission:Hw20716 16-Speed

Drive Axle:Hc16

Brake System:Dual Circuit Compressed Air Brake

Tire:12.00-20 Optional 12.00r20

Tank Load Capacity:20000L to 24000L

Tank Material:Carbon Stee Optional Stainless Steel

Standard Equipment:1-Chamber,Fuel Pump,Fiscal Tanker, Refueling Guns

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

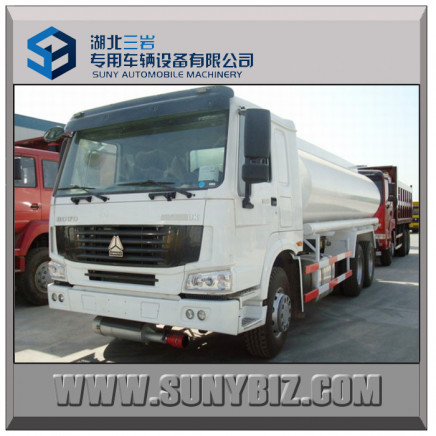

20000L Sinotruk howo 6x4 oil tank truck

Our factory produces fuel tank truck is in accordance with the GB18564.1-2006 "road transport of dangerous liquid tank vehicles part 1: technical requirements of atmospheric pressure metal tank" to make steel tanks. In accordance with the customer's needs, we can produce different standards in line with C.N. national standard, U.S. Standard, and the EURO standard and other products. The main products involved: all types of fuel and refuel tank trucks, insulation fuel tanker truck, heavy oil tank truck, edible oil tank truck, palm oil truck, aviation kerosene oil tank trucks, fuel tank container, horizontal independent tankers, mobile refuel stations, fuel tank trailers. Tank material: opting carbon steel, stainless steel, aluminum alloy. Mainly used for oil tanker derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar oil, etc) transport and storage. Due to the different needs of different customers tank vehicle / trailer / tank its transport medium, and the accessories of brand or different specifications, so that the price range is large, we can fully in accordance with customer demand for customized. Therefore requires detailed price, please kindly call or email your needs details to us in your free!

Products Technical Specification
Brand-Series		SINOTRUK HOWO 6*4 OIL TANK TRUCK
Chassis Model		ZZ1257N4647C
Emission Standard		Euro 2
Fuel type		Diesel
Cabin		HW76 with A/C,one bed
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	1020025003600
	Tank dimensions	720023001680 (20,000L)
	Wheel base	4600+1350
	Front overhang	1500
	Rear overhang	2750
	Min. ground clearance	450
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	10870
	Max payload	20000-30000
Whole vehicle main performance	Max. speed (km/h)	90
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	WD615.47
	Maximum power	273kw / 371hp
	Number of cylinders	6
	Displacement (L)	9.726
	Engine Manufacturer	CNHTC
Transmission	Brand and Model	HW20716
Transmission	Number of gears	16 forward gears, 2 reverse gear.(Manual)
Axle	Rear Load capacity (ton)	HC16
Suspension	Front	10- Leaf spring
Suspension	Rear	12- Leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Dual circuit compressed air brake
Electric device	Rated voltage	24V
Tyres & Quantity		12.00-20 & 10+1
Tank Description
Tank dimensions(mm)		720023001680 (20,000L)
Tank material		Carbon steel Q235
Standard Equipment		1-chamber,fuel pump,two artesian mouth, two pipelines,toolbox
Optional Refueling equipment		Fiscal tanker, refueling guns , refueling reel, flow meter. European standard manhole,etc.

Other oil tank trucks:

Drive Type	Tank Load capacity
4x2 4x4	1000L~15000L
6x2 6x4 6x6	18000L~26000L
8x2 8x4 8x8	27000L~ 45000L
Fuel tanker trailer	30000L ~60000L

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-100P-600P-700P
-HINO 700
-UD
................,etc.

If you have any questions please let Adam Li know!!!
